| 85,90 € 77,31 € |

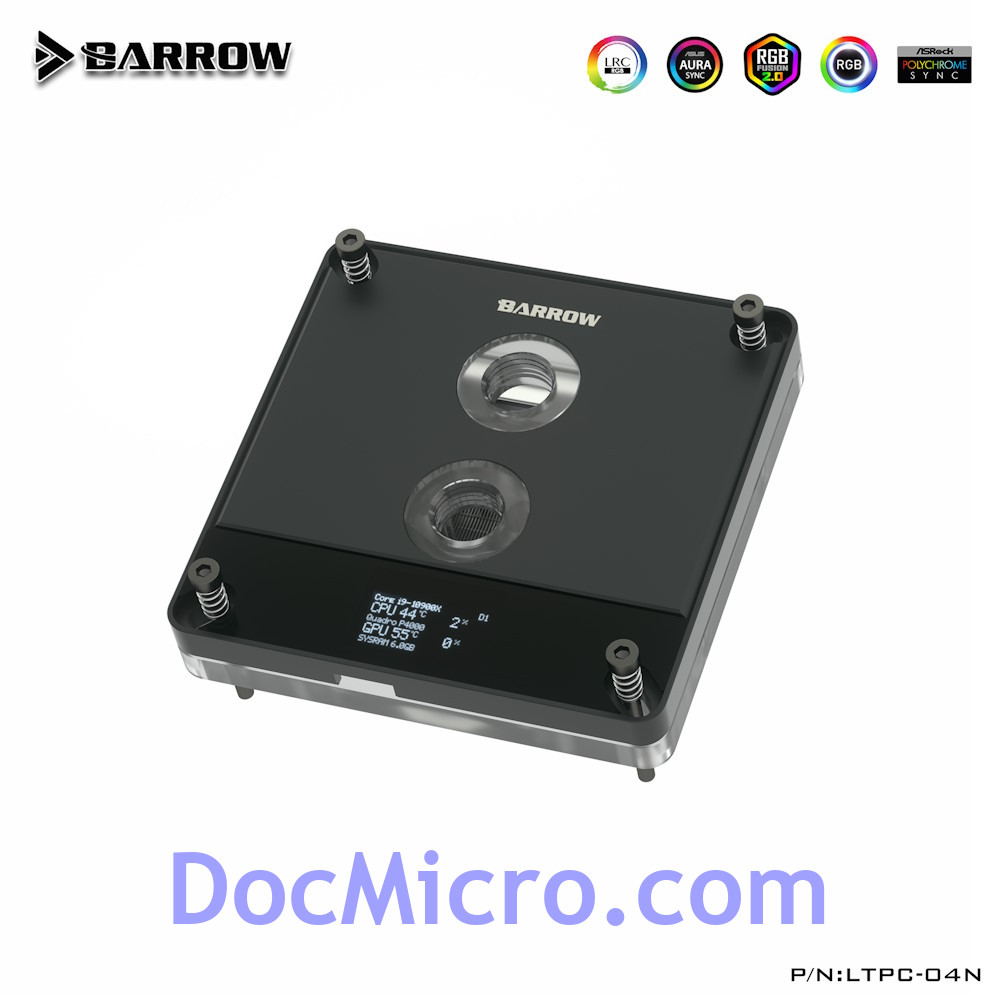

Waterblock designed for the Intel mainstream and workstation platform, this waterblock will work with 115x/1200/1700/x99/x299 processors.
High-density jet microchannel
58mm*58mm Hiht purity copper nickel plating base plate, up to 49 micro channels, each channel is clear bottom grooving, 4 + 2 asymmetric (0.4mm slot width + 0.2mm interval) channel. The contact area between the cooling liquid and base plate is increased, and the heat dissipation efficiency of water block is enhanced.
Copper-nickel plated mount
As the main material of the soleplate, copper with thermal conductivity which is less than silver, has high heat absorption and heat transfert efficiency. The surface adopts the mirror nickel plating process, which can effectively prevent the soleplate from oxidation and increase the service life.
Barrowch could have stopped there, but they insisted on giving you a fully customizable RGB that can be synchronized with your ASUS, MSI, Gigabyte and ASRock motherboards (adapter cable sold separately ref: ZBDZJX-5).
LED power is supplied via a 3-pin LRC 2.0 fan connector and temperature reading is obtained via a thermal probe integrated into the water block.
All mounting hardware is included so you have everything you need to get up and running.
Technical characteristics :
Material: Copper + Acrylic + Aluminium alloy (panel)
Weight: 300g
Thread: 2x 1/4"
Intel Compatibility: Sockets 115x/1200/1700/x99/x299
Delivered with :
1x CPU water block
Complete hardware
Delivered without tip
EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Plexi is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Trinity RTX 3080/3090 water blocks and actively cool the backside of all ZOTAC® GeForce RTX™ 3080 and 3090 Trinity GPU.
For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.
EK-Quantum Vector Trinity RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling.
The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.
These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.
The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.
The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.
Enclosed:
- EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Plexi
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Technical Specification:
- Dimensions: (LxHxW) - 231x124x15mm
- D-RGB cable length: 500mm
- D-RGB LED count: 8
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Made in Slovenia - Europe!
