| 69,90 € 62,91 € |

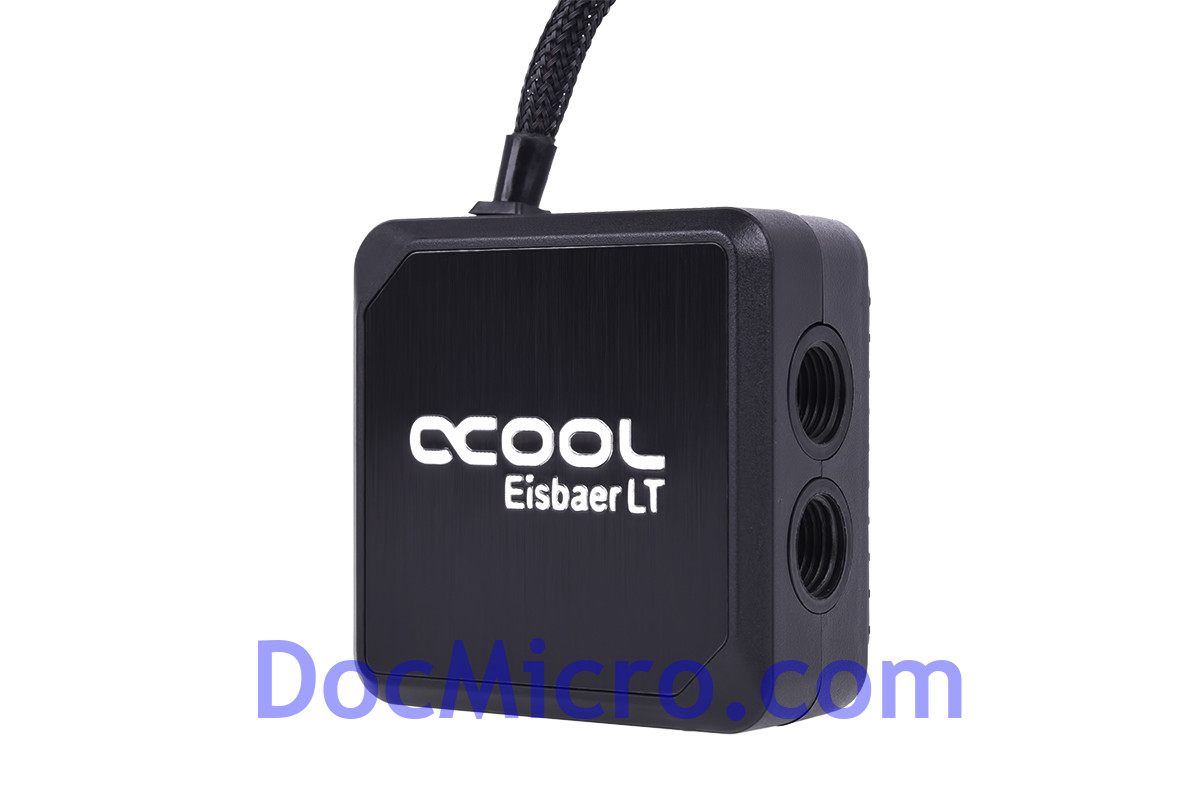

The popular Eisbaer LT AiO liquid cooler is now also available in a solo version. This gives you the opportunity to design your own AiO solution according to your wishes. All connections use the G1/4" thread which we have all become to love. This is the common format for almost all water cooling fittings. You can also decide for yourself which hoses and radiators you want to use, so nothing stands in the way of your own design ideas.
The basis of the Eisbaer LT Solo is the well-known DC-LT 2 2600 Ceramic Pump, which is also available separately. It was specially developed for compact systems and offers enough performance to create a loop for them. The pump is operated via a 3-pin Molex connection and can be regulated via a voltage from 7 to 12 V. This means that the already high performance of the water cooling circuit is maintained. This significantly reduces the volume of the already extremely quiet pump.
The radiator is made of pure copper and has an ultra-fine cross slot structure for maximum cooling performance. To further increase the performance, the Eisbaer LT Solo also uses a nozzle technology. This accelerates the water just before it hits the CPU cooling plate, so that the heat can be transported away from the CPU more quickly.
The Eisbaer LT is the perfect base to create your own CPU AiO water cooling system according to your own design. Let your ideas run wild.
Technical Details
Cooler
DC-LT 2 2600 pump
Scope of Delivery
Compatibility Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 2011 / 2011-3 / 2066
AMD Compatibility: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4
The next generation - the Alphacool Eisblock Aurora water cooler for Geforce RTX 4XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.
Important note: The RTX 4090 Eisblock Aurora Reference cooler is not compatible with Nvidia's Geforce RTX 4090 Founders Edition. The RTX 4090 FE is compatible with the following cooler: Alphacool Eisblock Aurora Acryl GPX-N RTX 4090 Founders Edition with Backplate (Art. 15632)
Technical Highlights
The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.
Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.
Design
The Aurora design of the Geforce RTX 4XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.
Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mk, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7W/mk. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3W/mk.
Compatibility:
| Technical data cooler | |
| L x W x H | 198,60 x 144,29 x 35,89mm |
| Material cooler | chrome-plated copper |
| Material cooler top | acrylic |
| Threads | 4 x G1/4" |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 12 |
| Technical data backplate | |
| L x W x H | 198,60 x 119,69 x 6mm |
| Material | aluminium |
| Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
