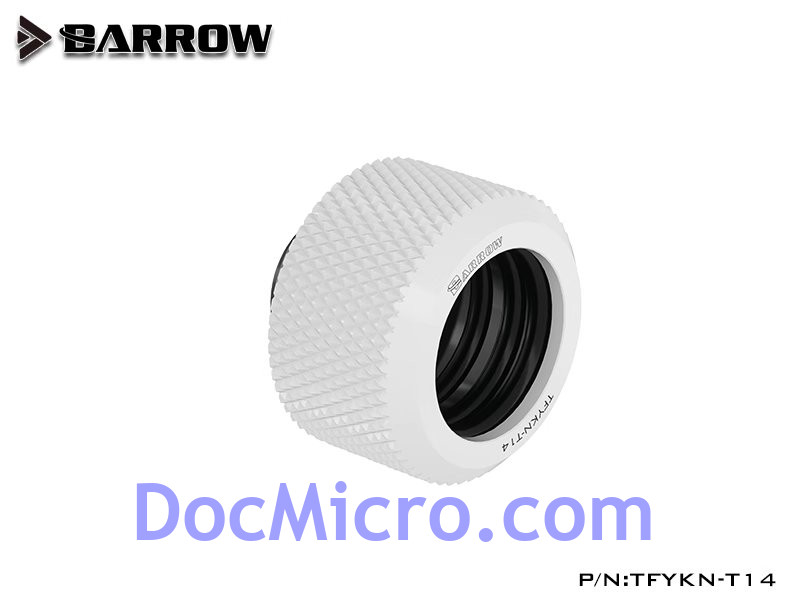

Fitting intended for use with rigid acrylic, copper, stainless steel or any other type of compatible rigid tubing.
The fitting prevents the solid tubing from being pulled out of the fitting by compressing the rubber gasket below the bushing.
The product is made of nickel plated brass with quality O-rings.
Technical characteristics :
- Thread: 1/4 "Male; 5mm Thread Length
- Outside diameter of the tube: 14mm
- Compatible tubes: acrylic, copper, steel, brass ...
- Color: White
To facilitate installation, we recommend wetting the gasket before installing the solid tube.
Do not exert excessive force when inserting the tube!
It is mandatory to chamfer the edges of the pipe in order to avoid damage to the joints. EK recommends a chamfer of 0.5mm x 45°
These Monsoon Premium Chain Gun fittings are intended for watercoolers looking for an aesthetic and efficient fitting.
Its design with a round ring with six colored barrels is a tribute to the power of fire.
The high-end finish of these fittings, its design and its complete packaging make it a must for your rigid pipes.
The pipe is fixed on the fitting by sticking it in the Lock Collars already installed on the fitting (See the video below for assembly):
http://geno.boxgods.com/Hardline_Premium_Fittings.mp4
Glue is available here .
Characteristics :
Machined from marine grade brass.
Antimicrobial nickel base.
Modular - fully interchangeable - between mounting styles and tube types.
Available in 6 colors.
1/4 "thread and high quality seals
Color seals provided.
Available for 13mm and 16mm outer diameter tubes.
Delivered with :
4 fittings
4 black gaskets
4 color gaskets (depends on the color of the fitting)
4 Lock Collars
8 seals for Lock Collars
1 assembly wrench
Monsoon fittings are only compatible with MONSOON 13 / 16mm Rigid hose, they are not compatible with Alphacool hose.
