| 8,90 € 8,01 € |

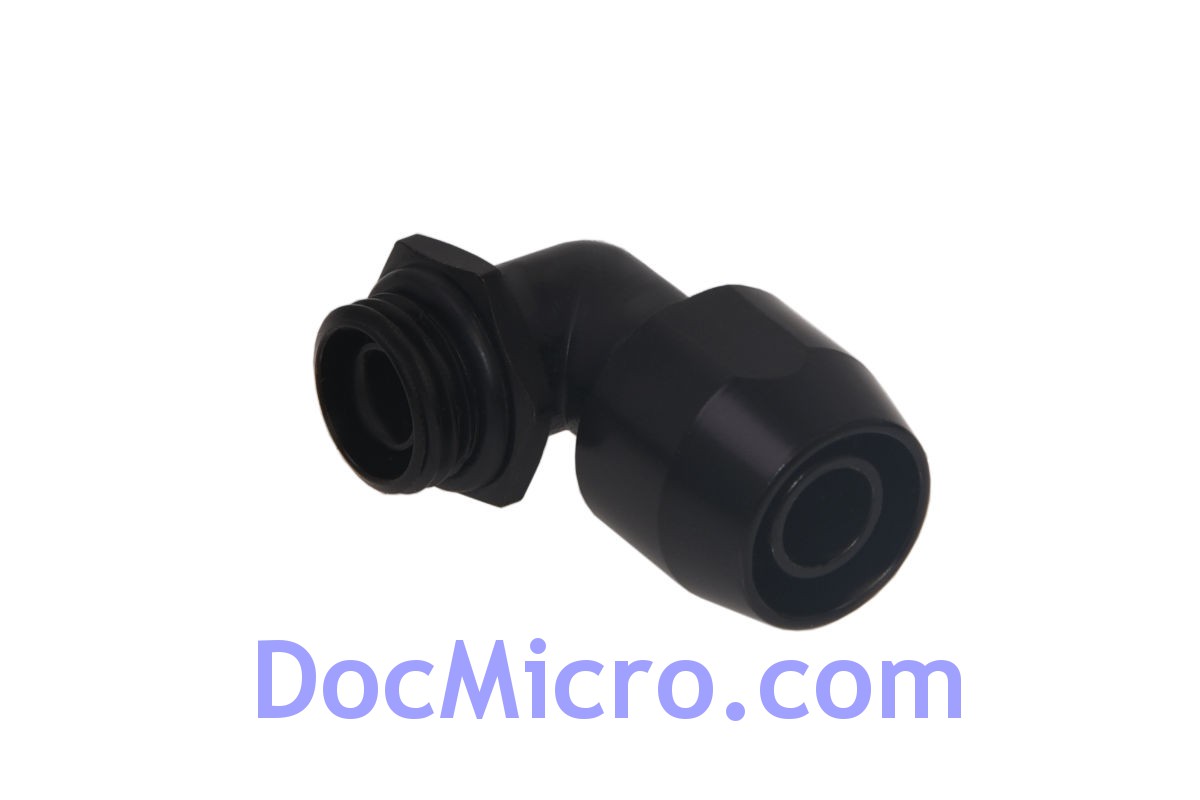

he Alphacool 90° TPV Rotary Metal fitting is part of Alphacool's Enterprise Solutions product line and was specially developed for the use of Alphacool TPV hoses.
Enterprise Solutions Connections?
Alphacool uses the TPV water cooling connections exclusively for servers and workstations. Since the space conditions in a server housing can be quite cramped, the Alphacool 90° TPV fitting is particularly low profile. The total height is only 26 mm. After screwing the connection into e.g. a radiator or CPU water cooler, the height is only 21 mm. A fitting cannot be designed much lower from our experience.
Double seal
The Alphacool 90° TPV Rotary Metal fitting uses a double O-ring system to prevent leakage. These fittings have been used in servers and workstations for a long time and have proven their durability in professional environments.
Technical data:
L x W x H: 35 x 27 x 18 mm
Material: brass
Thread: G1/4"
Thread length: 5.5 mm
Hose size: 12,7/7,6 mm
The EK-Pro CPU WB 4677 Rack Ni + Acetal is a dedicated enterprise-grade water block with 1U chassis compatibility specifically developed for LGA 4677 Intel® Xeon processors. The core of the new CPU water block was refined to manage the growing heat dissipation of new processors and to upgrade connectivity options for server rack requirements. The new server/workstation-grade CPU water block is compatible with 1U chassis type and suitable for use in server racks.
The EK-Pro CPU WB 4677 Rack Ni + Acetal water block features a total of 4 G1/8" threaded side ports for low-profile usage.
This enterprise cooling solution is built with performance, reliability, serviceability, and no compromises in mind. This water block meets these demands with top thermal performance and unparalleled connectivity, making it the perfect choice for liquid cooling high-density computing systems.
The EK-Pro CPU WB 4677 Rack Ni + Acetal water block features a precisely machined copper base (coldplate) made from the purest copper available on the market and is treated with nickel electroplating. The top is CNC machined from durable black POM Acetal, and the hold-down bracket is made of laser-cut stainless steel.
Intel® CPU socket compatibility:
- LGA 4677
Enclosed:
- EK-Pro CPU WB 4677 Rack Ni + Acetal Water Block
- 2x EK plug G 1/8”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- 1x Torx T30 Key - 1x 5mm Allen Key
- Thermal grease (1g)
