| 4,90 € 4,41 € |

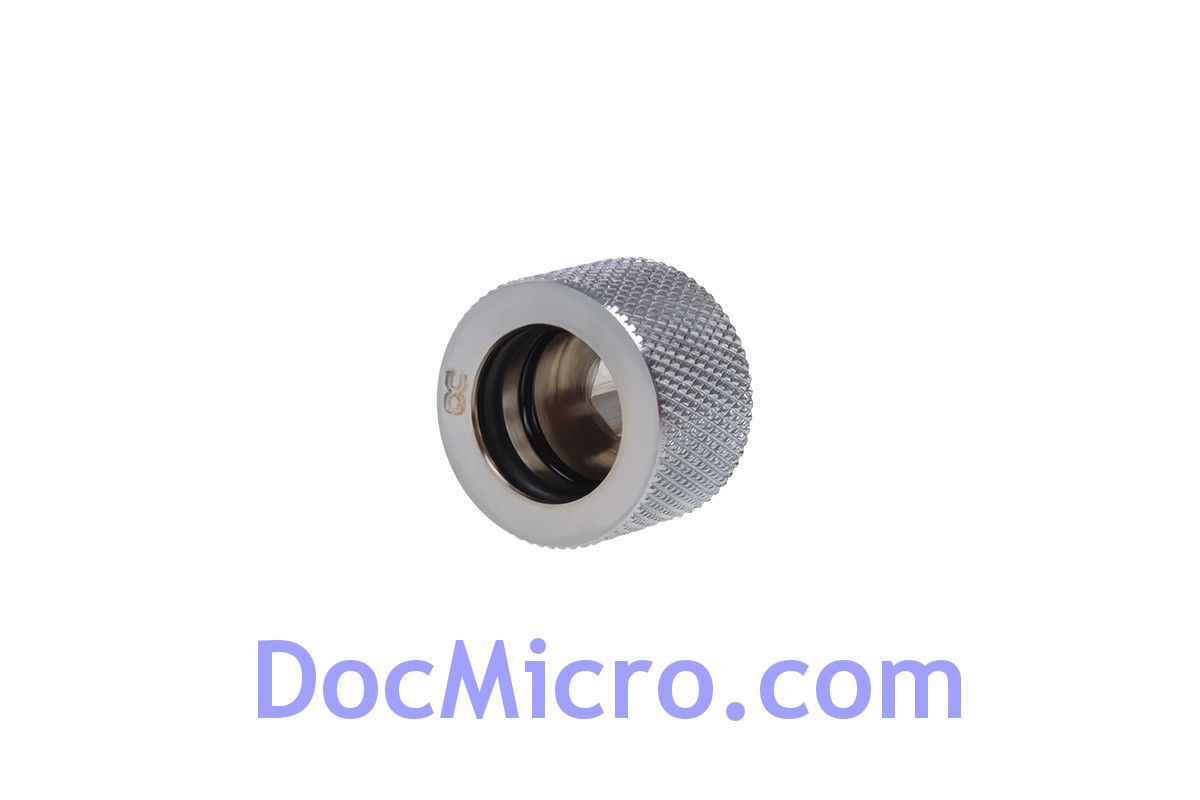

With the new HT compression fitting from Alphacool for Plexi brass tubes Alphacool has taken another step towards perfection and quality.
The first two colors, Chrome, Deep Black offer great variety. The completely matching product series makes every system shine in its own, highlighting the individual has no limits in conjunction with Alphacool Plexi / brass tubes!
With a new process during chromatising the finish is completely connected with the brass body. The longevity of the intense colors of the chrome layer is improved. Alphacool lettering on the fittings highlights the individuality of these items again.
The function of this connector:
This connector is used to connect a 16mm plexi tube with a 1/ 4” thread.
Technical details:
Material: galvanized brass,
Color: Chrome
Dimensions:
Width: D25,5mm
Height: 23mm
Scope of delivery:
1 x Alphacool HT fitting G1 / 4 for plexi brass tubes- Chrome
The Alphacool ES quick release coupling set IT/IT is designed for permanent mounting on a PC or server case and works like a bulkhead fitting. The quick release coupling enables quick connection or disconnection of externally connected radiators or cooling systems.
Mounting
The quick-release coupling set is mounted in two openings in the casing, each with a diameter of 18mm (see mounting example). Male and female connectors are inserted with the threaded side through the round openings and screwed tight with the enclosed lock nuts. The water circuit is then connected on the inside of the case via the two G1/4" internal threads. External radiators or cooling systems can now be easily connected to the water cooling in the housing by using additional quick-release fasteners.
Accessories
The quick release coupling set comes with a locking ring. This is inserted into the opening mechanism and prevents accidental disconnection of the coupling. An opening aid is also included, which makes it easier to disconnect the coupling in tight systems.
Compatibility:
- G1/4" OT connections
- quick release coupling OT/OT (art. 17537)
- quick release coupling IT/IT (art. 17569)
- quick release coupling TPV (art. 17469)
| Technical data | |
| L x D (total) | 89,5mm x 23mm |
| L x D (male connector) | 54mm x 23mm |
| L x D (female connector) | 55mm x 23mm |
| Material | nylon |
| Thread | G1/4" IT |
| Working temperature | 60 °C |
| Pressure tested | 0,8 Bar |
| Color | black |
