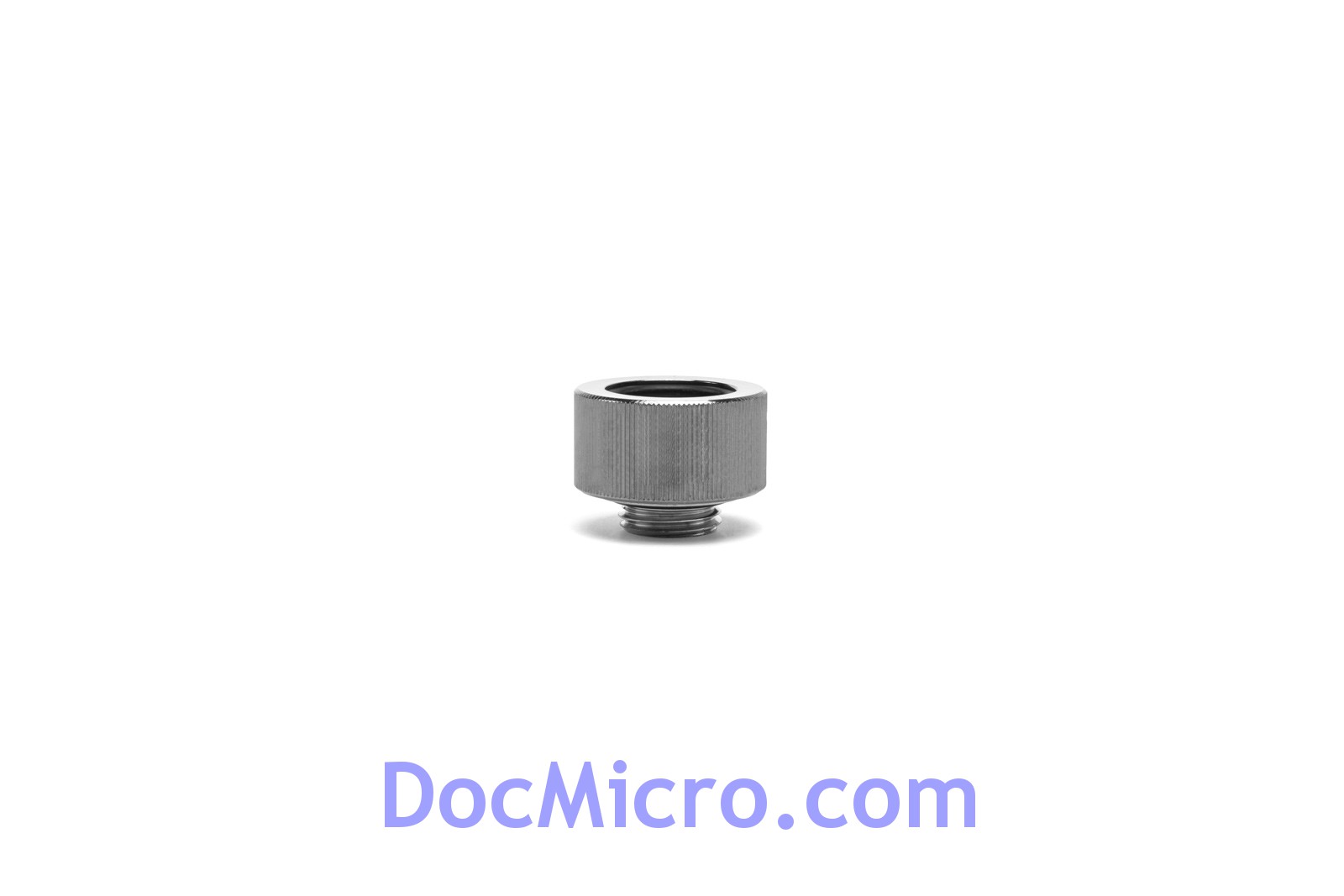

EK-HTC Classic 16 (Hard Tubing Compression) Fittings are 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a high-quality finish, the EK-HTC Classic Fittings are an aesthetically appealing and secure option for your custom loop liquid cooling system. A non-intrusive, minimalistic look, with NO added branding at all.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. EK-HTC Classic fittings are available in the three most popular color options such as nickel, black and black nickel.
The barb and the ring are made of CNC machined brass and the seal is made quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the bard is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an EK-Loop Multi Allen Key (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products!
These fittings have guaranteed compatible with all other EK Water Blocks liquid cooling products.
Technical data:
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 16mm OD
- Outer diameter of a fitting: 23.8mm
- Installed height: 13mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Alphacools's fittings go new ways in looks, quality of manufacturing, colours and choice. The inner diameter of these fittings truly deserves the „high flow“ attribute!
The first three colours, Chrome, Deep Black and Shiny Copper offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. The limits are endless with these Alphacool fittings in combination with Alphacool tubing!
With a new process during chromatising the surface finish is completely connected with the brass body, hence ensuring permanent intense colours and peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.
Functionality of this connector:
This angled adaptor can be used to connect a fitting of your choice at a 90° angle. This element is not revolvable, making it ideal to give a fixed direction to the fitting.
Technical specifications:
Material: Brass, chromatized
Colour: Chrome
Dimensions:
Length: 23mm
Width: D16mm
Height: 19mm
Extent of delivery:
1 x Alphacool HF L-connector G1/4 outer thread to G1/4“ inner thread - Chrome
