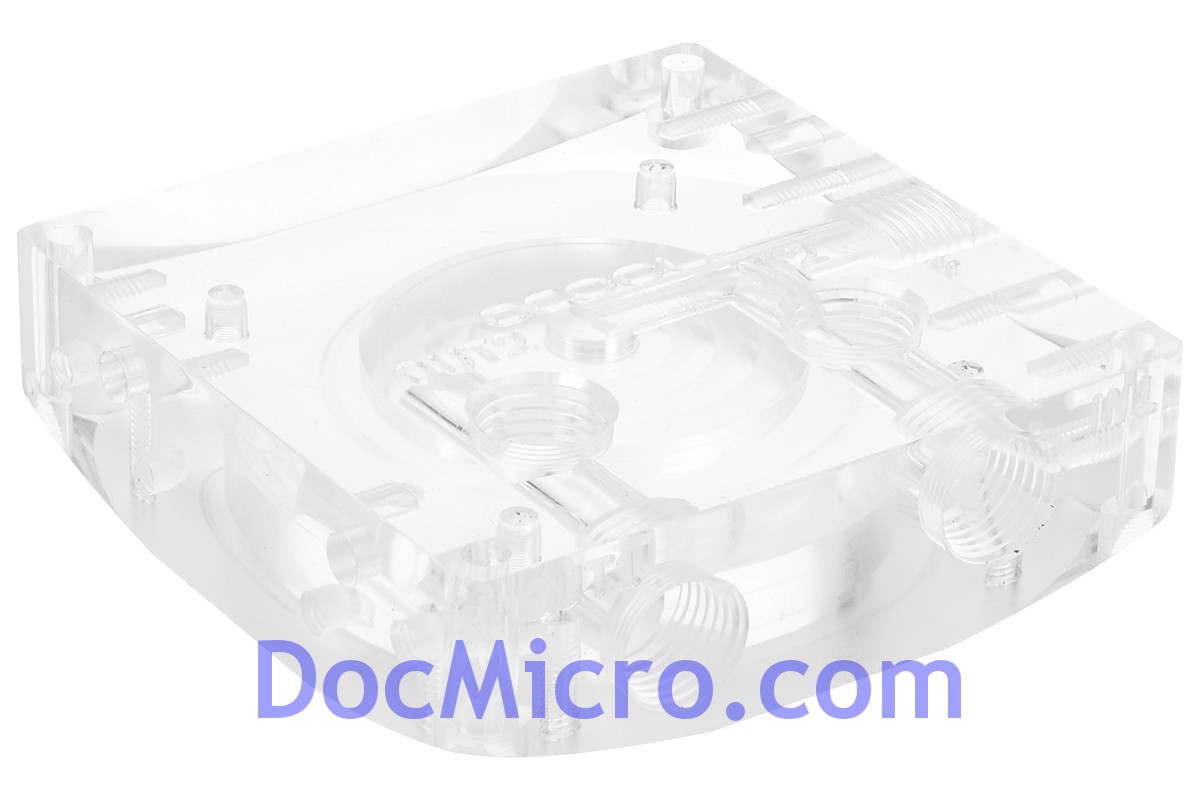

Alphacool Eisdecke Laing DDC Plexi top V.2

The tried and tested Laing DDC top has now been redesigned.

For years now again and again, only small improvements have been made. This major update differs both, visually and technically.

Revisions:
On the bottom there is space for the Laing DDC pump and in the front or on top the inlet and outlet.
For even more flexibility, the Eisdecke gets three inlets and two outlets. Another feature is the new holder keeping the entire unit a stable with great looks. Optional installation in 3.5 "drive bay is possible.
The top can be converted by using an adapter, which is given as an accessory, to an complete reservoir which has also been revised.

For all the Casemodder: In this top there are four holes for 5mm LED’s.

Technical Details:

• Dimensions (LxWxH): 80 x 80 x 23mm
• Material: Plexi
• Threads: 5x ¼“

Scope of delivery:

• 1x Alphacool Eisdecke Laing DDC Plexi Top V.2
• 3x screw plug ¼“
• 2x stands
• mounting material

Monting manual

Note regarding mounting: After mounting a small gap remains between pump and top. The tightness is given, since the O-ring ensures a safe connection here. Therefore, do not over-tighten the screws too tightly, it can cause damage to the lid.
