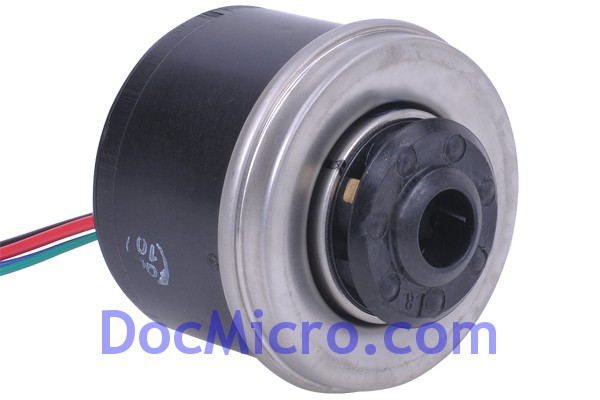

Alphacool's new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.
This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.
The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.
The special feature of this model is the fact that only the pump core itself is shipped. Why pay more for all the things you won't need when using this pump with a third-party pump top?
Please note: Pump control possible with Heatmaster!
Note: For pump control via the Heatmaster the Alphacool pump adaptor cable (Item No. 25066) is required!
Datasheet D5 Pump VPP655
Notice
Not intended for continuous operation with fluids containing titanium dioxide or glycerin. Many pastel colours typically use these additives.
The Alphacool Apex Distro Plate is the visual upgrade for the Y60. It was specially designed for this case and replaces the front glass panel. A must-have for every custom water cooling system.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique premium product. A core element is the chrome-plated brass G1/4" connections. In this way, Alphacool avoids the problem of possible leaks due to cracking caused by screwing the connections directly into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when installed in the acrylic.
High-quality choice of materials & brilliant lighting
Alphacool's Apex Distro Plate is made from high-quality acrylic glass. This allows a clear view of the coolant and enables brilliant illumination thanks to the built-in digitally addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the mainboard or optionally via Alphacool's Aurora Eiscontrol aRGB controller (article no.: 15360).
Easy installation
The Alphacool Apex Distro Plate Y60 replaces the front glass panel of the Y60 housing and is easy to install. It is mounted in place of the glass panel and securely fastened using the original screws. After installation, the distro plate is connected to the water cooling loop.
Note: The Apex Distro Plate Y60 is only compatible with the Y60 housing.
Attention: It is not possible to mount the Distro Plate if a 140 mm or 280 mm radiator is attached to the side.
Compatibility:
- Y60 Case
Technical data
Dimensions (L x W x H)
344,50 x 213,50 x 87,30 mm
Material
acrylic
Volume
approx. 300ml
Pump compatibility
VPP/D5
Threads
6x G1/4" + 1x fill port and 1x drain port
Maximum working temperature
60 °C
Pressure tested
0,8 Bar
Quantity digital aRGB LEDs
11
Power digital aRGB LEDs
5V
Power connection digital aRGB LEDs
3-Pin JST + 3-Pin 5V
Weight
3000g
Color
transparent
Technical data pump
Material pump
synthetic material
Material pump cover
aluminium
Material axle
ceramics
Connections
4-Pin PWM | SATA
Rotational speed
2500 - 4500 RPM
Cable lengths
4-Pin PWM - 48cm | SATA - 48cm
Operating voltage
8-13V DC / 14W IP32
Starting voltage
12V DC
Maximum pumping head
4,25m
Maximum flow rate
340L/h
Maximum working temperature
60°C
Color
black
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
