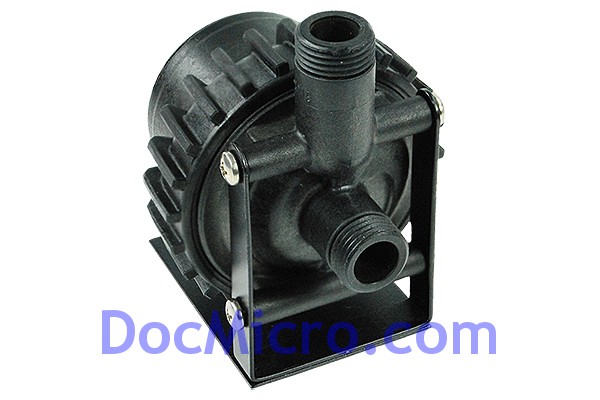

Alphacool's new power pump series, exceptional performance at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.
This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.
The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.
The special feature of this model is the ability to be adapted to all common hose sizes via a sleeve. Another feature is the ability to be adjusted in five speed settings via a lever on the pump.
Technical specifications:
Dimensions (WxHxD): 90x90x90mm (without connectors)
Motor: Electronically commuted spherical motor
Rated voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8-24V DC
Pressure head at 12V: 3,7m
Maximum flow: 1500l/h
Pumped media: Water, water/glycol mixtures
Maximum system temperature: 60°C
Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
Connectors: 2x 1/2“ outer threads
Special features: Adjustable in five steps
Step 1: 1800 rpm
Step 2: 2550 rpm
Step 3: 3300 rpm
Step 4: 4050 rpm
Step 5: 4800 rpm
Power connector: 4 Pin Molex
Extent of delivery:
1x Alphacool VPP655 -OT12 (G1/2" outer threads)
Datasheet D5 Pump VPP655
Please note: Pump control possible with Heatmaster!
Note: To adapt to G1/4 inch inside thread, we recomment ordering the articel number: 64125 and 64044 two pieces of each fitting.
Note: For pump control via the Heatmaster the Alphacool pump adaptor cable (Item No. 52171) is required!
The installation manual you can find here as Download
Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!
The Laing DDC pump is one of the best known pumps in the watercooling industry. Recently we have been working with Laing to take the DDC to the next level. The new Laing DDC310 was designed with a perfect balance of power and silence in mind. Unlike other versions with the plastic base we have revised the design with new superbly tuned brass housing which aids the pumps cooling and guarantees longer life especially when placed in areas with limited airflow.
This new housing promises a longer life of the pump. Through the cooling fins and air flow as well as an internal thermal pad attached directly to the pump board maximum cooling is achieved.
Another feature is the included decoupling option. If a pump top with a M4 threaded mounting hole, such as the Alphacool Laing DDC Acetal top is present. The special M4 screws can be screwed directly into the decoupling set and then into the case.
The pump also comes as standard with an anti-vibration mounting system . Available in black nickel and silver nickel.
This pump should be the first choice for your watercooling system.
Technical Details
Scope of delivery
Note
Not suitable for continuous operation with liquids containing titanium dioxide or glycerine. Typically, many pastel colors use these additives.
