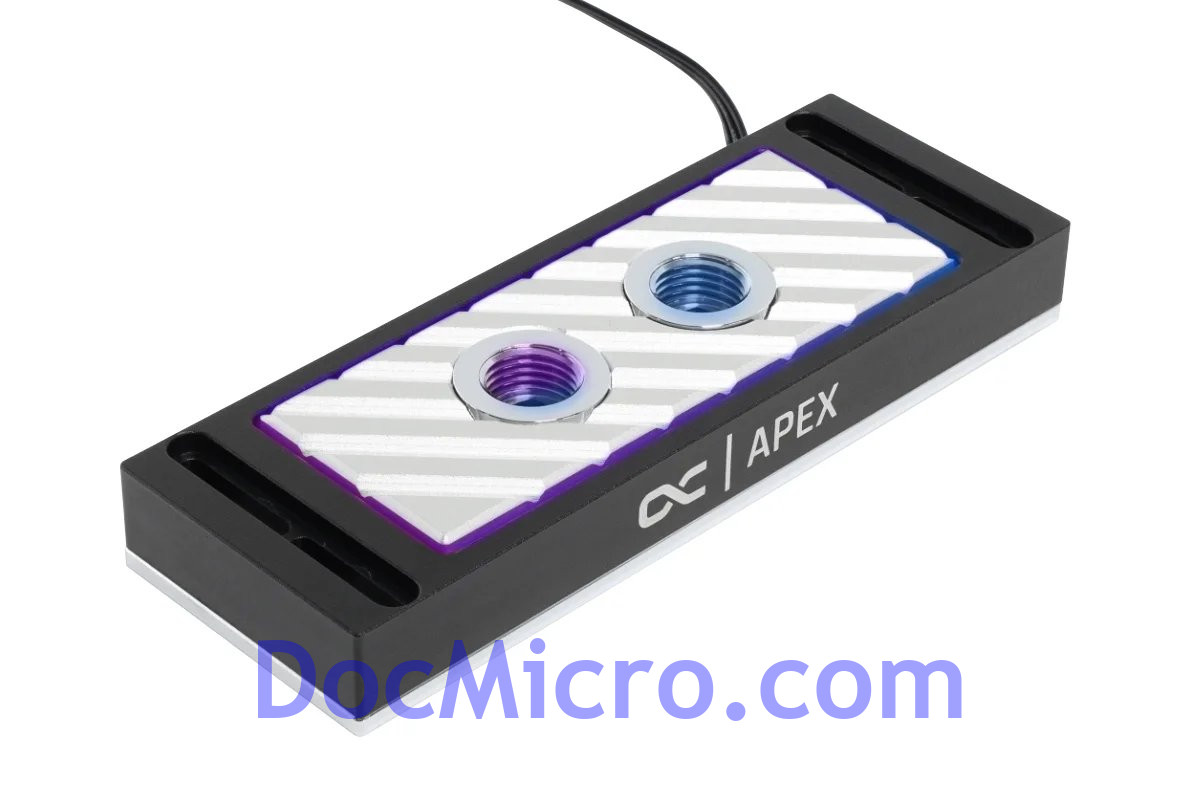

The Alphacool Apex RAM X4 water cooler in combination with the Alphacool D-RAM modules offers maximum cooling performance for your memory. As RAM is becoming more and more powerful, it is advisable to reliably dissipate the resulting waste heat with a RAM water cooler. The Apex optics and digital aRGB lighting ensure a stylish appearance.
High-quality RAM cooler
As modern hardware produces more and more waste heat, powerful and reliable cooling is essential. The Apex RAM X4 with its 3mm thick nickel-plated copper cooler base offers precisely these features. It is optimized specifically for the latest RAM generation. Installation of the Alphacool Apex RAM X4 water cooler is straightforward.
Note: Additional Alphacool D-RAM modules are required for the RAM on which the Apex RAM X4 Water Cooler is mounted. Up to four RAM slots can be covered by this X4 cooler.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique premium product. The design language harmonizes perfectly with other Apex products, creating an impressive overall picture.
Digital aRGB lighting
A total of five aRGB LEDs provide discreet but impressive lighting, with each LED individually controllable via a corresponding controller or via the mainboard. This opens up many creative possibilities.
| Technical data | |
| Dimensions (L x W x H) | 127,50 x 45,00 x 17,30mm |
| Material cooler top | Aluminium |
| Material water-bearing components | PMMA (plastic) |
| Material cooler base | Nickel-plated copper |
| Threads | 2 x G1/4“ |
| Power supply Digital aRGB | 3-Pin 5V |
| Quantity digital aRGB LEDs | 5 |
| Pressure tested | 0,8 bar |
| Max working temperature | 60°C |
| Weight | 270g |
| Color | black / silver |
EK-Quantum Vector N+ RX 6800XT/6900XT is a 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for SAPPHIRE NITRO+ 6800XT and 6900XT graphics cards based on the latest AMD® RDNA2™ architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.
EK-Quantum Vector N+ RX 6800XT/6900XT water block is compatible with SAPPHIRE NITRO Radeon RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine.
These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.
The base of the block is CNC-machined out of high-grade nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM Acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.
The aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.
EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections.
Enclosed:
- EK-Quantum Vector N+ RX 6800XT/6900XT series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
Technical Specification:
- Dimensions: (LxHxW) - 285x149x16.5mm
