| 69,90 € 62,91 € |

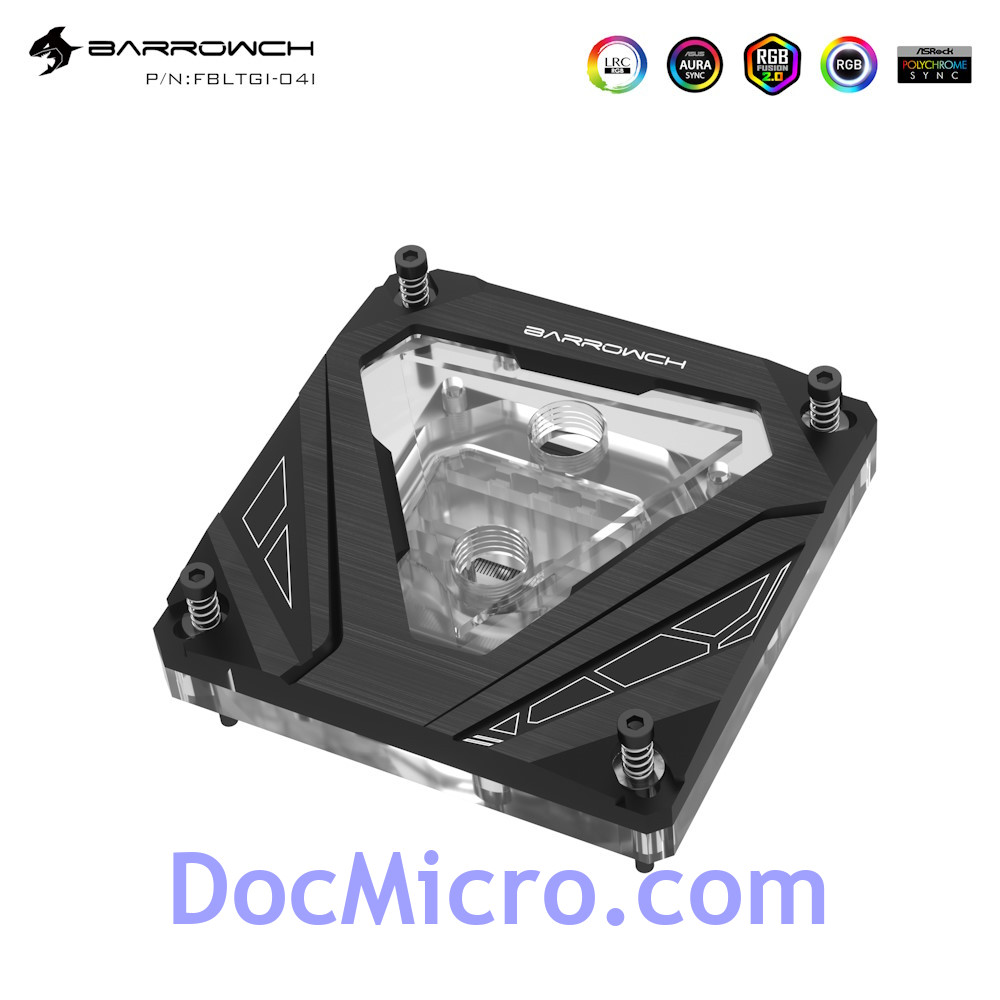

Waterblock designed for the Intel mainstream and workstation platform, this waterblock will work with 115x/1200/1700/x99/x299 processors.
High-density jet microchannel
58mm*58mm Hiht purity copper nickel plating base plate, up to 49 micro channels, each channel is clear bottom grooving, 4 + 2 asymmetric (0.4mm slot width + 0.2mm interval) channel. The contact area between the cooling liquid and base plate is increased, and the heat dissipation efficiency of water block is enhanced.
Copper-nickel plated mount
As the main material of the soleplate, copper with thermal conductivity which is less than silver, has high heat absorption and heat transfert efficiency. The surface adopts the mirror nickel plating process, which can effectively prevent the soleplate from oxidation and increase the service life.
Barrowch could have stopped there, but they insisted on giving you a fully customizable RGB that can be synchronized with your ASUS, MSI, Gigabyte and ASRock motherboards (adapter cable sold separately ref: ZBDZJX-5).
LED power is supplied via a 3-pin LRC 2.0 fan connector and temperature reading is obtained via a thermal probe integrated into the water block.
All mounting hardware is included so you have everything you need to get up and running.
Technical characteristics :
Material: Copper + Acrylic
Weight: 300g
Thread: 2x 1/4"
Intel Compatibility: Sockets 115x/1200/1700/x99/x299
Delivered with :
1x CPU water block
Complete hardware
Delivered without tip
EK-FC1080 GTX FTW is a high-performance full-cover water block for EVGA® GeForce GTX 1080 FTW series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas, thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC1080 GTX FTW water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic performance allowing this product to be used in liquid cooling systems using weaker water pumps.
The base of the block is made of nickel-plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for a safe and painless installation procedure.
EK Water Blocks recommends the purchase of aesthetic retention backplate (EK-FC1080 GTX FTW Backplate - Black, Nickel) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC Terminal. Up to four EK-FC1080 GTX FTW water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.
We recommend EK-Cable PWM Fan Adapter for GPU for connecting your GPU to PWM-enabled fans in your custom loop and thus controlling the PWM profiles based on the graphics card temperature.
Enclosed:
- EK-FC1080 GTX FTW series water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts and washers
- 2x EK plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
