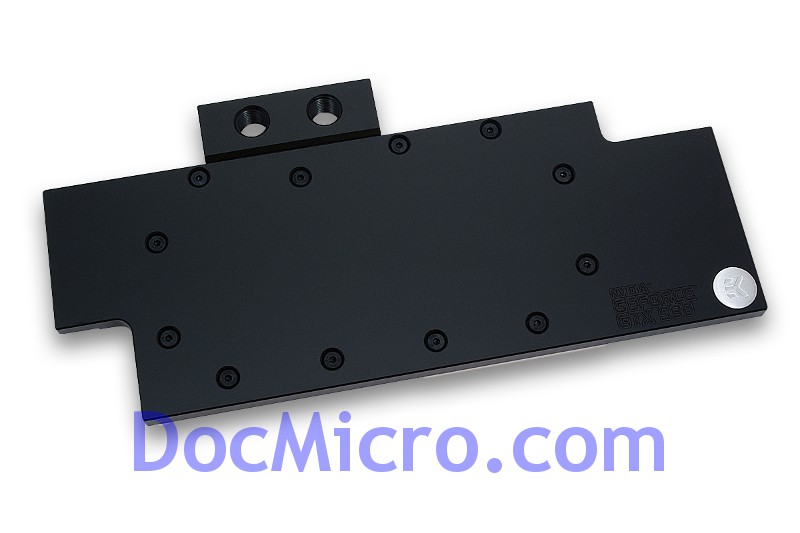

EK-FC980 GTX is a high performance full-cover water block for nVidia reference (NVA-1G401) design GeForce GTX 980 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!
This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC980 GTX water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic perfromance allowing this product to be used in liquid cooling systems using weaker water pumps.
Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M2.5 DIN7985 screws and allows for re-use of the original NVIDIA backplate.
EKWB recommends the purchase of aesthetic retention backplate (EK-FC980 GTX Backplate - Black, Nickel, Blue, Red, Gold) which improves the looks of your graphics cards and also provide some passive cooling to the circuit board VRM section.
G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC980 GTX water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.
EK-FC980 GTX series product is also the choice of EVGA for their factory liquid cooled NVIDIA GeForce GTX 980 HydroCopper series graphics cards.
.png)
Enclosed:
- EK-FC980 GTX series water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts and washers
- 2x EK plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
PLEASE NOTE:
 |
|
The EK-Quantum Magnitude is the new ultimate bespoke CPU water block from EK® that brings the highest cooling performance with the lowest possible flow restriction. The 115x version of the water block is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and die layout of Intel® 115x socket processors.
Different from any mounting structure used by other water blocks that are usually black and mundane plates, the design accentuates an integrated X-shaped, three-dimensional frame with premium finishes that firmly cradles the main body in place while the screws are morphed into a sophisticated design detail.
Specialized manufacturing techniques were deployed to create this truly unique product. Not a single component of Magnitude was made using mass production techniques; instead, every single piece was CNC machined separately, out of a solid piece of material. This version of the water block features a nickel-plated copper cold plate with a minimalistic black top CNC machined out of durable POM acetal.
A CNC machined solid brass insert made it possible to significantly enlarge and optimize the cooling engine. Compared to previous generations of water blocks, the fin array has a 50% bigger surface area, all contained in a smaller footprint to ensure maximum compatibility even with mITX motherboards. The copper cold plate uses 0.40mm wide microchannels and 0.26mm thick microfins to maximize the thermal transfer with minimal flow restriction.
Since EK-Quantum Magnitude was engineered from the ground up for each specific socket, the 115x version features an insert that directs flow evenly over the CPU die which is used in combination with a cold plate geometry that is specific to 115x socket processors. One more feature of the Intel-based Magnitude CPU water block is the reversible insert that can accommodate easier tube routing. It allows the user to swap the inlet and outlet port, by simply rotating the brass insert piece by 180°.
The aesthetic interchangeable inner frame is also machined out of a single piece of white POM acetal which acts as a light dispersion element for addressable D-RGB LEDs. The aesthetic frame can be replaced with color-anodized aluminum variants that perfectly match EK-Quantum Torque fitting lineup or with a brass nickel-plated frame. The aesthetic interchangeable inner frames are sold separately.
Elegantly concealed under the aesthetic inner frame is a LED strip boasting the incredible 30, individually addressable D-RGB diodes that shine outward and illuminate the white frame. The addressable D-RGB is using an industry-standard 3-pin 5V digital LED connector (Pinout: +5V, Data, Blocked, Ground).
The mounting mechanism is a three-dimensional H shaped aluminum piece that makes the screws a seamless part of the water block. Strong edges and chamfers root this award-winning icon firmly among the EK-Quantum line. Did we say award-winning?
EK-Quantum Magnitude is bearing the prestigious iF Design award for its bold and different approach to the CPU water block mounting mechanism.
The cold plate of the Magnitude water block is intentionally machined into a convex shape to align with the concave shape of the CPU IHS. However, if you are interested in a flat cold plate that works perfectly with lapped CPUs or aftermarket IHSs, EK is providing a special, flat bare copper as well as nickel-plated copper cold plates that are sold separately.
The Magnitude is supplied with an additional, thicker jet plate. If the user concludes that his CPU IHS is exceptionally concave (poor thermal paste spread after mounting), the curvature of the water block cold plate can be adjusted by using this secondary jet plate. It will make the center of the contact area bow by an additional 0.1mm outwards, for it to make better contact with the IHS.
Technical specifications:
- D-RGB cable length: 50cm
- D-RGB connector standard 3-pin (+5V, D, Blocked, Ground)
CPU socket compatibility:
- Intel LGA-1150
- Intel LGA-1151
- Intel LGA-1155
- Intel LGA-1156
Enclosed:
- EK-Quantum Magnitude Water Block
- Mounting mechanism with all necessary springs, screws, and washers
- Additional jet plate - 0.6P
- EK-TIM Ectotherm (1g) Thermal Paste
- Allen (Hex) key - 2.5mm
Made in Slovenia, EU
