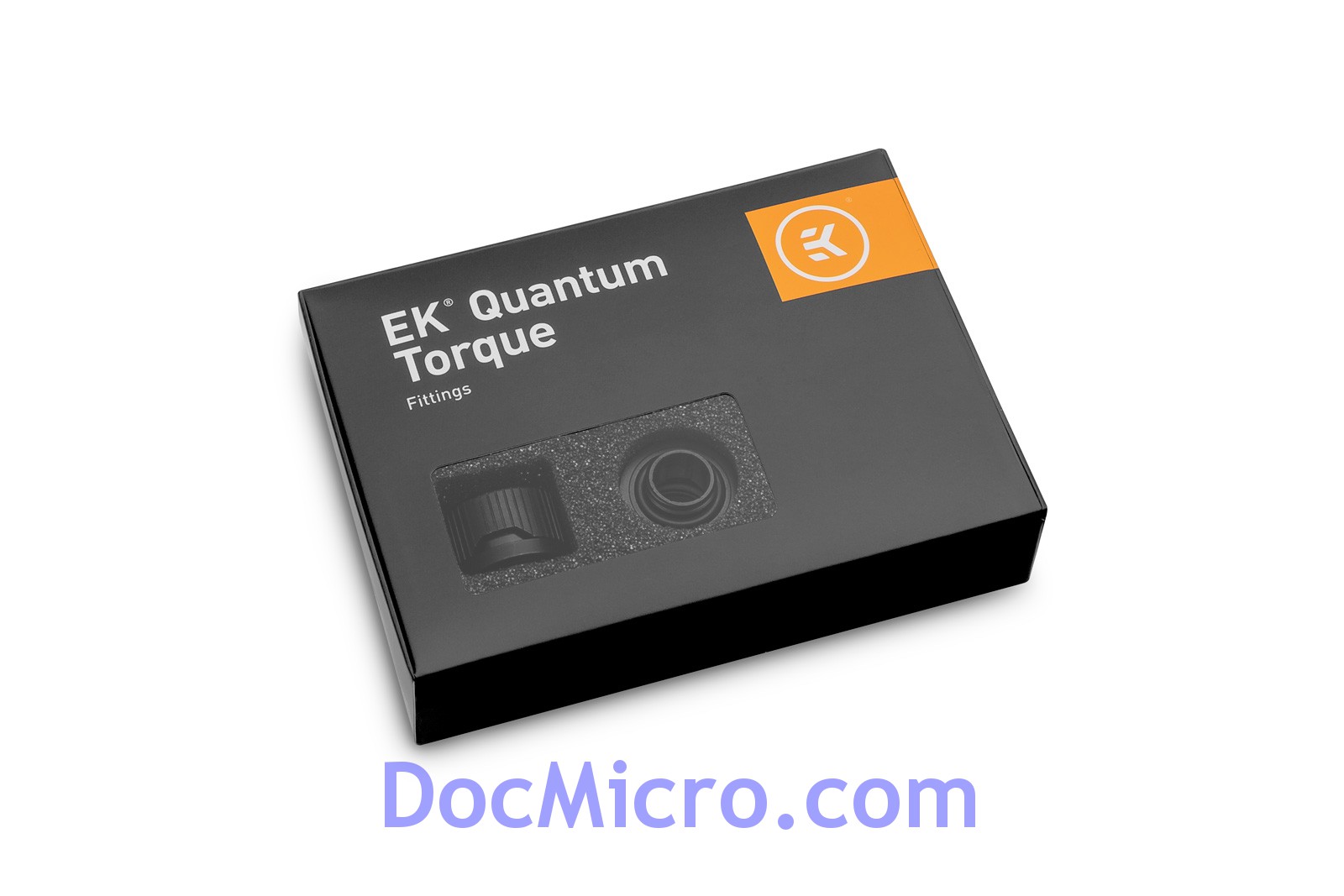

EK-Quantum Torque 6-Pack HTC 14 is a fitting multipack containing six EK-Torque HTC fittings. These are EK's premium 14mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products. To make sure they are undamaged in transport, they are packed in a box cushioned in black foam.
The locking ring prevents the solid tube from being pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in the EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The fitting barb and the compression rings are covered with a unique, high-quality nickel finish. Both are made of CNC machined brass and the seal is made by quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products! We recommend using the EK-Loop Multi Allen Key (6mm, 8mm, 9mm) which is made to break if excessive force is used, thus preventing damage to more costly components of your loop.
These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.
Technical data:
- Finish: Nickel
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 14mm OD
- The outer diameter of a fitting: 22mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
Alphacool's Eiszapfen connector series is the high-end execution of these tried-and-true fittings!
Everything you want in a compression fitting is here: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is. Fittings are available in brilliant chrome or a deep, matte black, which will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!
The union nut's slanted corners allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. This allows for greater safety in transport.
Model: 45° compression fitting 16mm plexi / brass tubes
This fitting is suitable for 16mm plexi or brass tubes on both sides. This fitting is bent 45° in the middle to avoid complicated hose connections.
Technical Specifications
Dimensions
Scope of Delivery
Fitting Map
You can find an interactive map of all Alphacool fittings here.
