Alphacools's fittings go new ways in looks, quality of manufacturing, colours and choice. The inner diameter of these fittings truly deserves the „high flow“ attribute!
The first three colours, Chrome, Deep Black and Shiny Copper offer something for every taste. The product matching series are designed to look elegant in every system, highlighting the individual design of the computer. The limits are endless with these Alphacool fittings in combination with Alphacool tubing!
With a new process during chromatising the surface finish is completely connected with the brass body, hence ensuring permanent intense colours and peeling of the chrome layer. The Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.
Functionality of this connector:

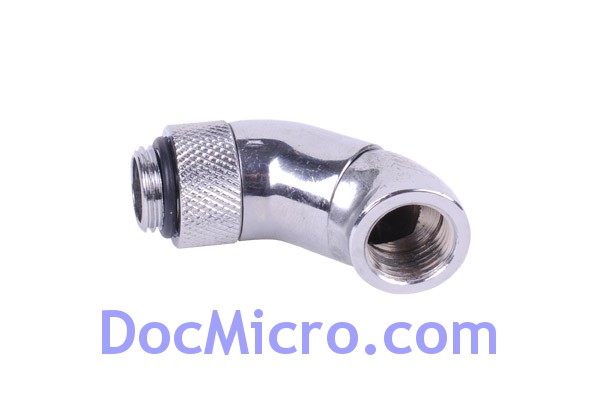

This angled adaptor is a true multi-talent. Revolvable in two places, it can cover all angled up to 90°. Alternatively it can be used to displace a connection thread for maximum fitting compatibility or other needs.
Technical specifications:
Material: Brass, chromatized
Colour: chrome
Dimensions:
Length: 52,2mm
Width: D18,1mm
Height: 25mm
Extent of delivery:
1x Alphacool angled adaptor double 45° revolvable G1/4'' outer thread to G1/4'' inner thread - chrome
EK-Torque HDC 12 fittings are EK's new minimalistic 12mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The fitting barb and the compression rings are covered with a unique, high-quality nickel finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products!
These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.
Technical data:
- Finish: Satin silver
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
