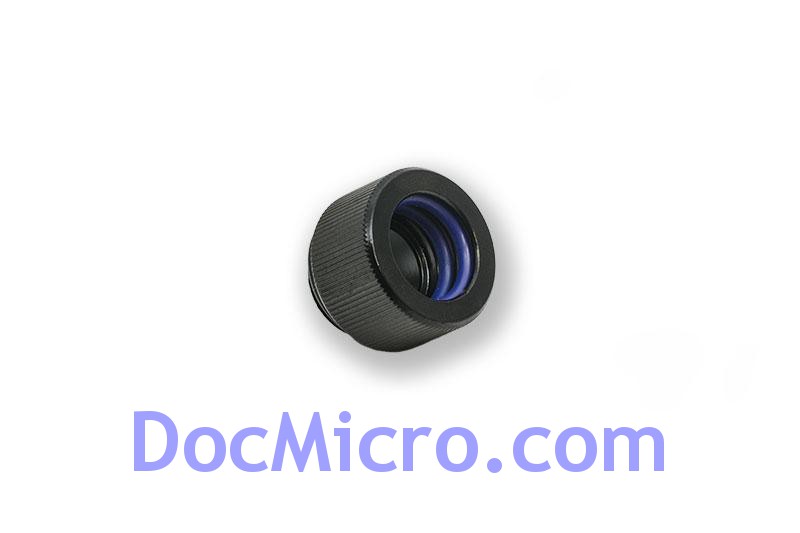

EK-HD Adapter is a solid-tube fitting, intended to be used with solid tubing such as Acrylic or Copper tube. Used in conjuction with EK-HD Tube it can also be used for connecting multiple Full Cover water blocks as an alternative method to using EK-FC Terminal system.
The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Technical data:
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 21.7mm
- installed height: 11mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
ROHS Compliant!
Made in Slovenia - EU!
