Alphacool is an internationally renowned company in the field of water cooling solutions for industrial and end customers. It is constantly developing, innovating and improving products to ensure that cooling is done efficiently whilst still looking aesthetically pleasing.
Uncompromising choice of materials

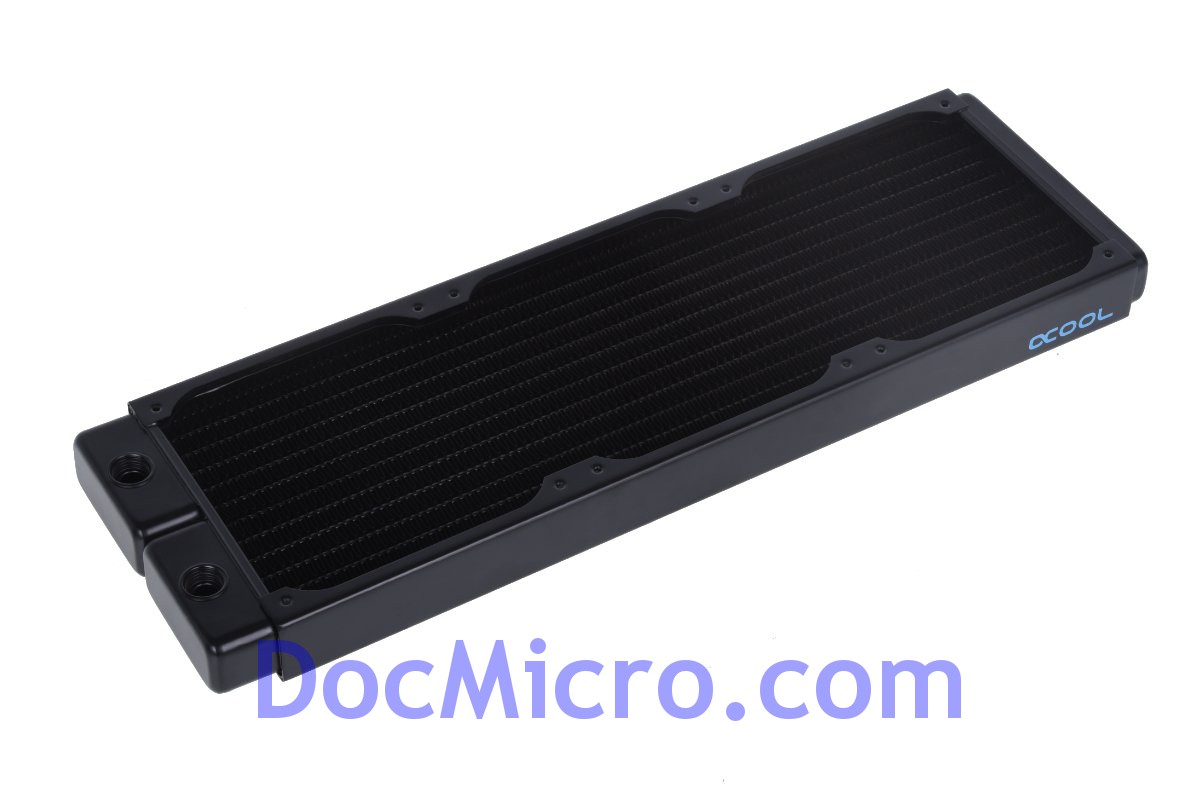

As usual, Alphacool uses pure copper for the NexXxoS V.2 radiators. The end chambers, the water channels and the cooling fins are made of copper and are a unique selling point worldwide. No other manufacturer uses pure copper for all these components. As a result, Alphacool radiators have been among the most popular and best on the market for many years. The perfect foundation for any water cooling system.
Full cooling capacity
To maximize the performance of a radiator, Alphacool reaches deep into the trickbox. Copper is the beginning. With a thermal conductivity of 400 W/(mK) for copper, compared to 236 W/(mK) for aluminium, the winner in this comparison is absolutely clear. The fin density is aso specially chosen to work for the user. Alphacool is one of the oldest companies in the field of water cooling and has carried out countless tests in the laboratory. The result is a fin density of 15 FPI. This means that the air flow is only slightly obstructed so that the air can move through without high pressure, however, the cooling capacity does not suffer from this. On the contrary. In order to make optimum use of the air flow, all cooling fins have small flaps on them. Some may know these from motorsport or aircraft design. Flaps are tiny wings that direct the airflow in the desired direction. With radiators, these are barely 1 mm high, but still provide controlled air turbulence to increase cooling performance and minimize flow noise.
New generation of screw plugs
All NexXxoS V.2 radiators rely on the new patented stop fittings from Alphacool. Anyone who has mounted a radiator on the front or in the ceiling of a housing knows that protruding screw plugs can ruin the aesthetic as the radiator cannot be placed flush. Alphacool offers a solution with the new patented screw plugs. They are fully countersunk in the radiator and sit flush with its surface. This means that nothing stands in the way of clean installation. Of course, the radiators also look much more elegant with the new locking screws.
Plenty of connection options
All versions of the NexXxoS V.2 ST30 radiators have two connection options for IN and OUT, one on each side. On the opposite side to the in/outlets the NexXxoS V.2 ST30 radiators now also have a fill or vent port. Of course, this connection can also be used to empty the water cooling loop. In any case, experienced users will be pleased.
The right size for every application
The NexXxoS V.2 radiators are available in all common sizes. From the compact 120 mm ST30 radiator to the 480 mm radiator for those who cannot get enough cooling power. Fans of 140 mm fans won't miss out though as Alphacool also covers all sizes from 140 mm up to the huge 420 mm XT45radiator. And to take the whole thing to extremes, there are ST30 and XT45 versions for all radiators. These differ quite simply by the thickness. ST30 stands for a thickness of 30 mm, XT45 for a thickness of 45 mm.
Safety first
The NexXxoS V.2, like the previous NexXxoS radiators, offers special protection that prevents screws from penetrating the radiator when attaching fans or when mounting the radiator to the case. Protective plates have been placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the cooling fins and channels underneath.
The King is Dead, Long live the King. Those who were happy with the previous NexXxoS radiators will appreciate the many small improvements that the the NexXxoS V.2 radiators offer. Now one of the best radiators has been made even better. Your system deserves them.
ATTENTION: The NexXxoS V.2 radiators are only compatible with connections with a maximum thread length of 5 mm.
Technical data:
L x W x H: 394,5 x 124 x 30 mm
Weight: 723 g
Material cooling fins: copper
Prechamber material: copper
Material cooling channels: copper
Material outer housing: steel
FPI: 15
Threads: 5 x G1/4"
Mounting options: 24 x M3 thread
Fan size: 120 mm
Fan slots: 3 one-sided / 6 double-sided
Fan threads: M3
Pressure-tested: 1,5 bar
EK-Loop Fan FPT 120 D-RGB - White is a 120mm high-static pressure computer cooling fan designed and built primarily for the highest-performance computer liquid cooling systems. FPT series fans aim to succeed the EK-Vardar fans completely, as they improve upon many aspects while maintaining focus on excellent radiator performance. These fans feature an optimized and balanced performance-to-noise ratio on the wide operational range of the fan.
FPT fans feature a full frame design that doesn't allow air to escape outside the frame and thus achieve overall better static pressure. The new fan allows daisy-chaining, ultimately reducing cable clutter and easing cable routing through the EK-OmniLink, an 8-pin Micro-fit connector-based ecosystem. All the signal and power wiring for PWM and D-RGB run on a single cable and connector, which then utilizes a single cable to connect to the source.
Full Pressure Technology (FPT) is a full frame design that makes contact with the radiator, sealing it completely off and thus doesn’t allow air escape loss of static air pressure.
Rubber corners are implemented on both sides of the fan to reduce vibration transfer to the rest of the PC.
The EK logo on the frame is applied in two orientations so that the user can achieve the optimal logo orientation for aesthetic purposes.
The cable can be optionally moved over to the other side if it eases cable routing.
EK-OmniLink – allows daisy chaining of multiple fans, thus reducing cable clutter and greatly easing cable management. The Omni-Link ecosystem of interconnects will be greatly expanded in the near future, allowing additional benefits to users. It uses Micro-fit 8-pin connectors between products.
The EK-OmniLink design resolves the cable clutter issues of unifying the connection of multiple fans onto a single PWM and D-RGB header while still maintaining full flexibility if the user wants to remove a single fan from the chain. Other similar solutions on the market use interlocking mechanisms, which require the removal of the entire fan link if the user needs more room to tighten a fitting on a radiator.
A new motor with a Fluid Dynamic Bearing will significantly reduce noise, especially during low RPM operation. Operational friction is kept at very low levels even after years of service, unlike the traditional ball-bearing fans, which get noisier as time goes by. FDB fans can be mounted in both horizontal and vertical orientations without issues and reduced longevity, unlike traditional sleeve-bearing fans.
Innovative herringbone grooves are applied to the fan bearing that recirculate and distribute oil naturally between the rotor shaft and bearing to keep a stable and silent operation at high speeds.
EK made sure that the white shade of FPT fans matches the shade of the most popular white cases on the market to promote color uniformity and make it easier for customers to match the new fans with their PC cases.
The white models of the FPT fans come with white cables, connectors, and rubber dampers.
The perfectly balanced milky-colored 7-blade impeller design is optimized for light dispersion and high static pressure operation while maintaining a low noise profile throughout the whole operation range of the fan. Having the LEDs exclusively in the rotor ensures the maximum possible length of the fan blades and, thus, better performance. Under the motor hub, there is a total of 9 upward-facing LEDs ensuring optimal light diffusion in broad daylight as well.
One of the key features of the EK-Loop Fan FPT 120 D-RGB fans is its simplicity as it uses standard 3-pin 5V D-RGB connectivity. Meaning it can be used with any standard 3-pin 5V addressable D-RGB controller or any of popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB (ARGB) header.
Key characteristics of the EK-Loop Fan FPT 120 D-RGB fan are:
Mechanical and electrical specifications:
- RPM range: 550 – 2300 RPM
- Rated voltage: 12V
- Power draw: 3W
- LED power draw: 2,3W (0,45A)
- PWM duty cycle: 20-100%
- Shaft bearing: FDB (fluid dynamic bearing)
- Bearing durability: 60000 hrs@ 25?
- Dimensions: 120mm x 120mm x 27mm
- Fan cable length: 100mm
- Fan daisy-chain connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
- Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header
Performance characteristics:
- Max Air Flow: 77,00 CFM = 130,82 m³/h
- Static Pressure: 2,7 mm H20 = 26,81 Pa
- Noise Level: 36,00 dBA (max. RPM)
Enclosed:
- 1x EK-Loop Fan FPT 120
New product, never used, delivered without box or screws.
Designed and engineered by EK Water Blocks in Slovenia - Europe
Made in China
