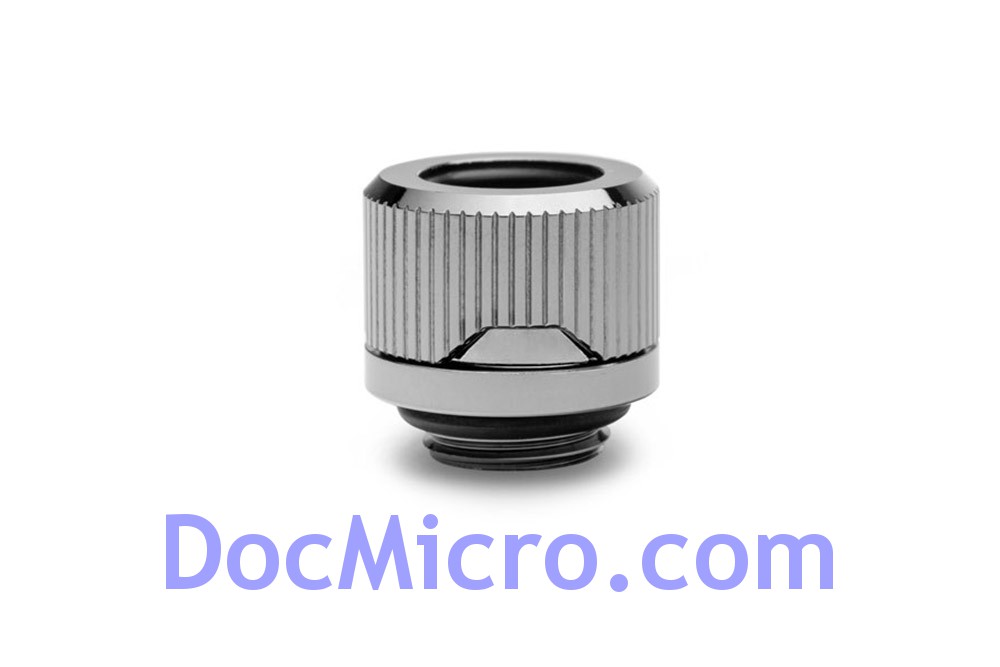

EK-Torque HTC 12 fittings are EK's new minimalistic 12mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The fitting barb and the compression rings are covered with a unique, high-quality black nickel finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using EK-Loop Multi Allen Key in order to prevent damage to other liquid cooling products!
These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.
Technical data:
- Finish: Satin black
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
With Alphacool’s new compression fittings for plexi, brass, borosilicate glass, or carbon tubes, Alphacool is taking another step in the direction of perfection and quality.
The first two colours, chrome and deep black, offer a great variety to suit many tastes. The fully coordinated product series gives every system a chance to shine, and the customization options are endless when paired with Alphacool plexi-brass tubes!
A new chromatization technique binds the colouring tightly to the brass surface. This improves the longevity of the intense colour and prevents any chipping of the chrome layer. Blue Alphacool lettering on some of the connectors also highlights the uniqueness of these parts.
The function of these connectors is:
This connector can be used to connect a 13mm plexi, brass, borosilicate glass, or carbon tube to a G1/4" thread.
Sixpack:
Since six connectors of one kind are often necessary, Alphacool is now offering Sixpacks. This has a lot of advantages for you!
Technical Details:
Material: chromatized brass
Colour: deep black
Scope of Delivery:
1x Alphacool HT 13mm HardTube compression fitting G1/4 for plexi-brass tubes (rigid or hard tubes) - knurled - deep black sixpack
