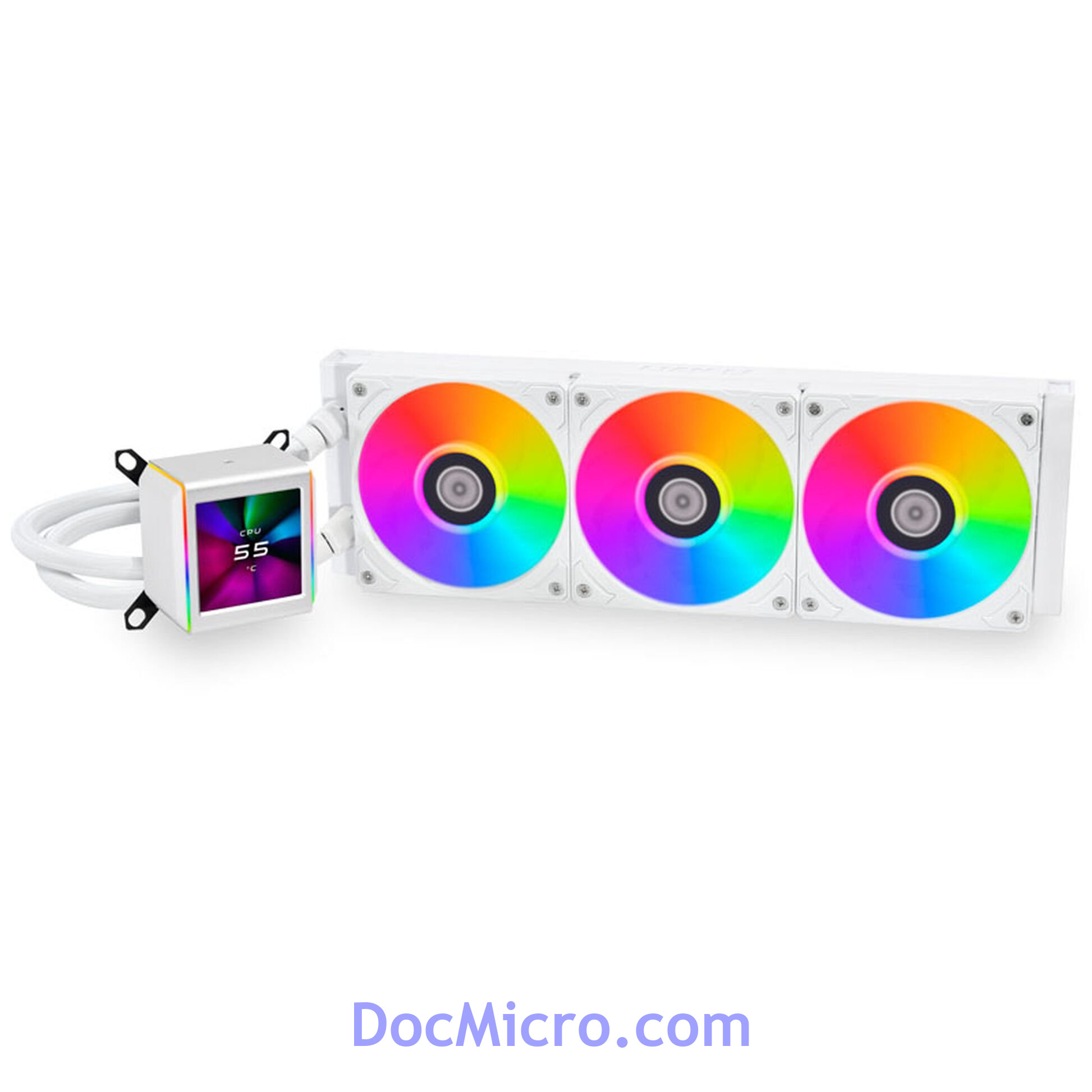

The Lian Li Galahad II LCD 360 AIO has received multiple refinements over the previous generation that help it to deliver phenomenal cooling performance. The copper cooling plate has been enlarged to a square, catering to the newer 7000er-CPUs from AMD an the next-gen Intel processors. Moving coolant efficiently through the three chambers, the latest 8th Gen Asetek PWM pump helps lower CPU temperatures. Topping off the pump is a freely configurable IPS screen, allowing you to display system information, animated effects, and more.
The design of the radiator has also been improved by increasing the fin density, allowing for a greater surface area to transfer heat. Additionally, the fins have been spaced closer together, increasing the flow rate through the stack. Alongside this, Lian Li has reduced the number of sharp corners the water takes within the loop, this includes utilising innovative 45-degree fittings on the radiator. Not only does this change reduce water resistance, but it also makes the radiator simple to install.
The aluminium radiator with its dense cooling fins, which is manufactured according to the highest technical standards, ensures impressive cooling performance. In combination with the Performance fans designed for high static pressure, the Lian Li GALAHAD II LCD 360 AIO offers optimal cooling, even when overclocking CPUs. Additionally, the powerful PWM-controlled Asetek pump of the current 8th generation with its 3-phase motor runs efficiently and quietly at 32.1 dB(A) even at maximum rotation of 3,600rpm.
The CPU block consists of a copper cooling plate chamber, a connecting chamber and an additional pump chamber to guarantee unhindered flow and efficient cooling. This special design directs the coolant specifically and with maximum pressure to the cooling fins on the copper base plate. This achieves particularly fast heat dissipation. The three-chamber design also eliminates turbulence inside the cooler and reduces the operating noise of the pump.
Included are three of Lian Li's stunning 120 mm Performance fans. These fans deliver phenomenal cooling performance, each capable of producing 135.75 m³/h (79.9 CFM) of airflow with a static pressure of 3.26 mmH2O. This is accomplished through the innovative fan blade design and the ability to reach speeds of up to 2,450 RPM. What's more, they are still whisper quiet at just 30 dB(A). Furthermore, Lian Li has ensured that these fans will look fantastic from any angle. Utilising a single cable, which can be hidden within the frame of the radiator, you'll be able to link all three fans together for unified control.
You can connect the fans directly to your mainboard via 4-pin PWM and 3-pin ARGB connectors, or you can use the enclosed expansion cable, which is connected to the CPU cooler via a 7-pin connector. You then connect the lighting and the PWM control to the fans, which are connected to the radiator via daisy chaining. Power for the fans is supplied by a SATA cable to the power supply unit.
The fittings of the AiO water cooling are angled at 45° and can be rotated freely. This allows you to position the GALAHAD II LCD 360 in your case as you wish, taking advantage of the high flexibility of the AIO tubing. Velcro straps are included to help you position the braided tubes optimally. The GALAHAD II LCD 360 is compatible with many AMD and Intel sockets and offers high performance and quiet operation in a noble and robust overall package.
In keeping with its impressive performance, the GALAHAD II LCD 360 also looks particularly stylish with its display on the pump lid. The high-quality aluminium housing of the radiator and the CPU block, including discreet ARGB lighting, as well as the sleeved 385 mm long tubing provide the necessary stability and a noble appearance. The Performance fans of the AIO cut a fine figure in any case.
