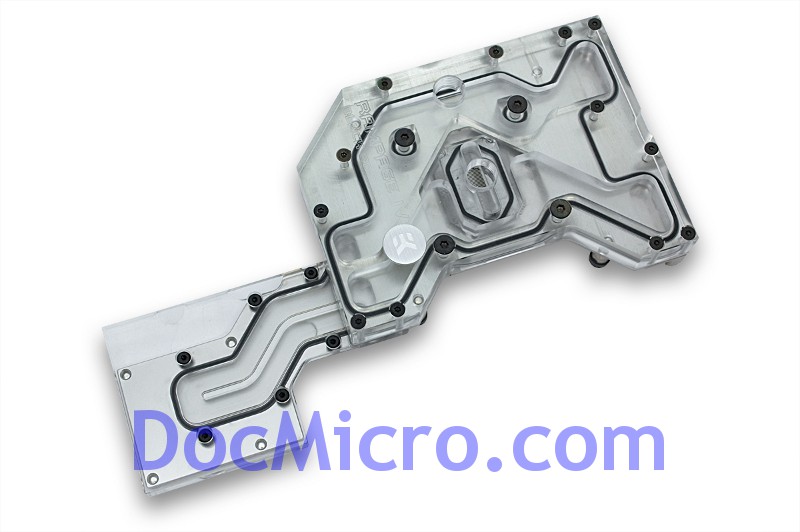

EK Water Blocks EK-FB ASUS R4BE Monoblock - Nickel

EK-FB ASUS R4BE Monoblock water block is a complete all-in-one (CPU and motherboard) liquid cooling solution for Intel LGA-2011 socket Ivy Bridge-E CPU and ASUS Rampage IV Black Edition motherboard.

This water block uses award winning EK-Supremacy cooling engine to ensure best possible CPU cooling. The water blocks directly cools Intel LGA-2011 socket type CPU, Intel X79 Express southbridge (PCH) and power regulation (VRM / MOSFETs) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with systems using weaker water pumps.

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality acrylic glass material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M3x4-, M3x8- and M4x10 DIN7985 screws and PVC washers and utilizes the factory provided MOSFET backplate. The nickel plated brass screw-in standoffs are pre-installed and allow for easy installation.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the CPU and southbridge (PCH) chip please use the enclosed electrically non-conductive thermal grease EK-TIM Ectotherm.

Enclosed:
- water block
- mounting mechanism
- thermal grease Gelid GC-Extreme (1.5g)
- thermal pads

Fittings are not enclosed! Two fittings are needed for proper operation.

PLEASE NOTE:
- Fittings are not included! Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
