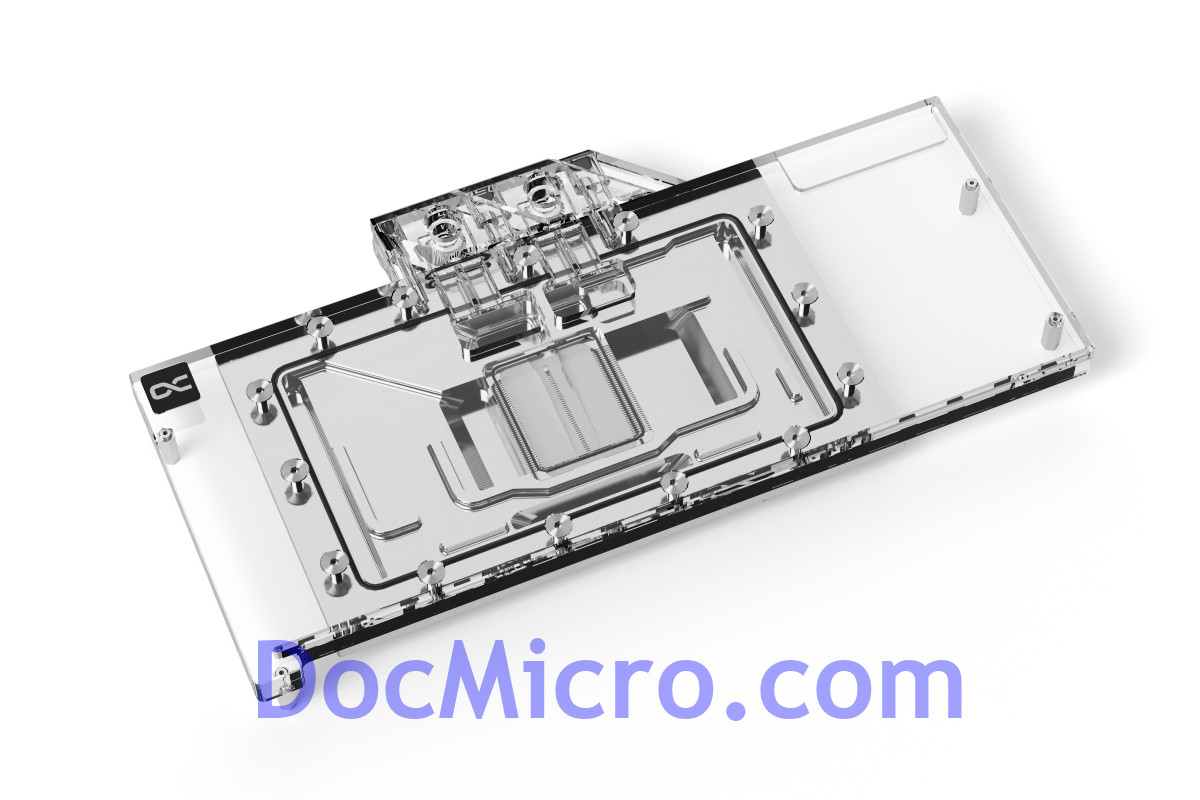

The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.
Technical Highlights
The fin structure of this Eisblock cooler generation was developed together with AMD board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.
Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.
Design
The Aurora design of the Radeon RX 7XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.
Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850.000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.
Compatibility:
| Technical data cooler | |
| L x W x H | 276,7 x 134,2 x 33,99mm |
| Material cooler | chrome-plated copper |
| Material cooler top | acrylic |
| Threads | 4 x G1/4" |
| Thickness cooling fins | 0,4mm |
| Distance cooling fins | 0,4mm |
| Illumination | digital aRGB LEDs |
| Power connector digital aRGB LEDs | 3-Pin JST |
| Power digital aRGB LEDs | 5V |
| Number of digital aRGB LEDs | 16 |
| Technical data backplate | |
| L x W x H | 276,7 x 109,7 x 6mm |
| Material | aluminium |
| Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
EK-Quantum Momentum Aorus Z490 Master D-RGB is the new Quantum Line monoblock specifically engineered for the Gigabyte® Aorus Z490 Master motherboard. Featuring the latest generation Velocity cooling engine with low restriction and high performance, this monoblock is equipped with a 3-pin D-RGB (addressable) LED strip and it offers unparalleled aesthetical customization alongside superior performance! The D-RGB LED in the monoblock is compatible with Gigabyte RGB Fusion 2.0 which offers a full lighting customization experience.
EK® Momentum series monoblocks utilize the 5th generation of the award-winning EK® CPU water block cooling engine, further tweaked for performance and optimal coolant flow! This water block directly cools Intel® 1200 socket-type CPU, as well as the power regulation (MOSFET) module. Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, the EK-Quantum Momentum Aorus Z490 Master features a high flow design and it can be easily used with the system using weaker water pump or lower pump speed settings as well. The Momentum monoblock also comes with sophisticated addressable D-RGB lightning which connects to a standard 3-pin 5V D-RGB header on the motherboard.
The purest nickel-plated copper available on the market is used for the cold plate which is precisely machined to a dense micro-fin structure. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation. Top of the monoblock features a CNC machined glass-like cast acrylic top piece.
The new cooling engine is characterized by the top-integrated jet nozzle which is combined with a thicker jet plate allowing a more precise bow control. The simplified water block structure offers a more optimized coolant flow and easier maintenance, while the jet plate ensures the best contact surface for the CPU.
Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation. The enclosed thermal pad is used on voltage regulator modules to improve stability, performance, and prolongs the lifespan of the motherboard. For the CPU, please use the enclosed (electrically non-conductive) thermal grease EK-TIM Ectotherm.
The block is already equipped with 3-pin 5V Addressable D-RGB LED strip which is compatible with the Aorus Z490 Master 3-pin 5V D_LED (Addressable LED Strip) headers. This product is also compatible with D-RGB controllers that support the pinout: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D_LED (Addressable LED Strip Headers)
Technical specifications:
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
Enclosed:
- EK-Quantum Momentum Aorus Z490 Master D-RGB Monoblock
- Mounting mechanism
- Thermal grease EK-TIM Ectotherm
- Thermal pads
Made in Slovenia - Europe!
