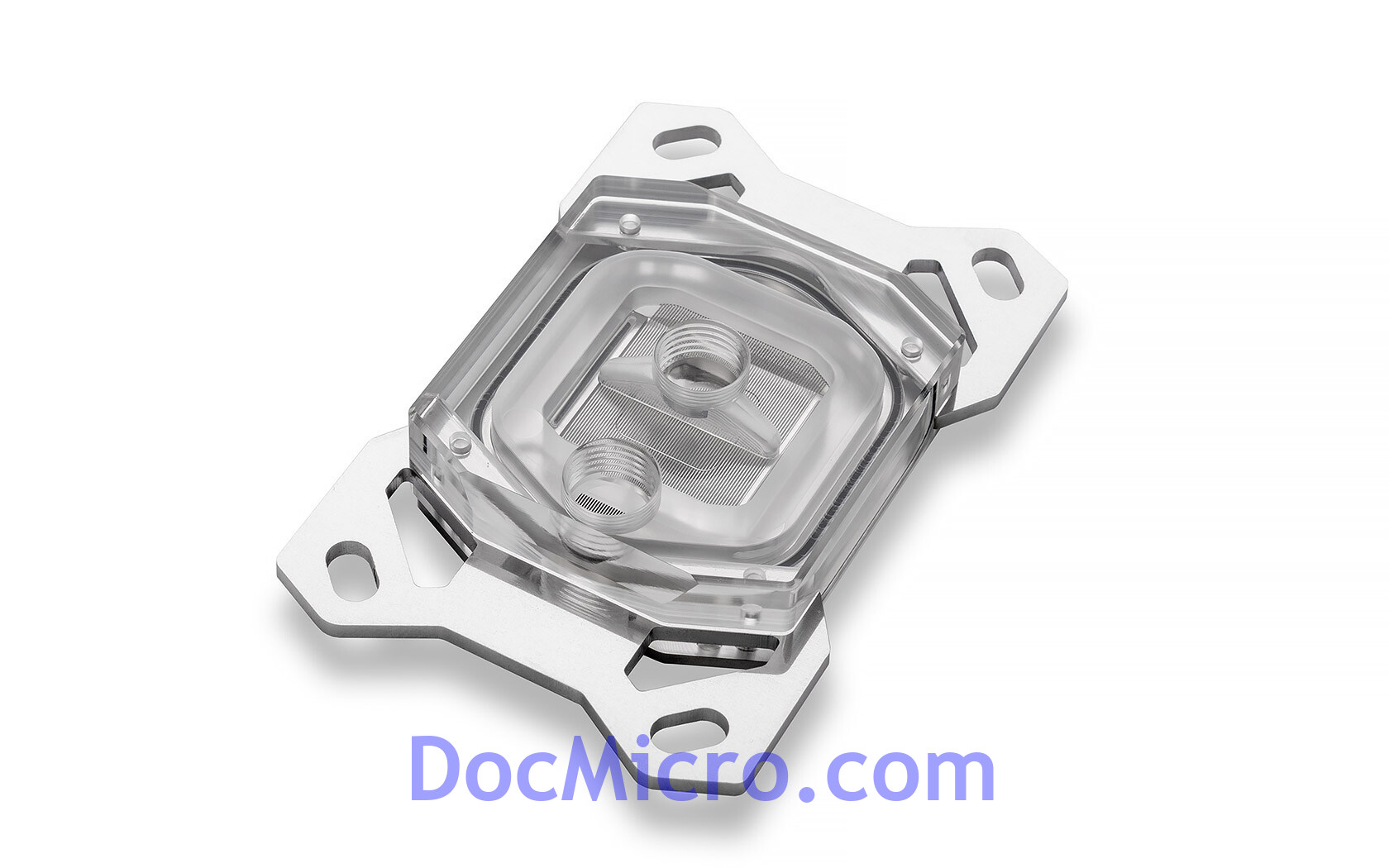

WaterCool HEATKILLER® IV PRO (AMD, AM4 ready) ACRYL HWLuxx Edition

WaterCool
WaterCool
This product is no longer available for sale
Item code : 15348
EAN : 4251312602987
Non-contractual photos
Technical details
Our HEATKILLER® series CPU water blocks are some of the best performing and most popular CPU blocks on the market. Since its introduction in 2001, we continuously enhanced and improved the series. The HEATKILLER® IV is the most comprehensive and recent iteration oft he franchise.
  • Up to 3°C better cooling performance compared to its predecessor
  • Better flow rate thanks to bigger jet plate nozzle and channel layout less clogging
  • Tool-less Easy-Mount-System
  • Compatible with extra large fittings thanks to 25mm port distance

New cooling engine and optimized flow paths

Through all developments, the cooling engine took the biggest evolutionary step. We gave the cold plate significantly thinner fins, which results in a larger surface and better heat dissipation. At the same time, we made sure that the flow rate isn’t impacted by this.
We dropped the separate jet plate design, but integrated its mechanics directly into the top. This new technology improves performance, flow rate, and reliability.

Heatkiller IV Easy-Mount, premium manufacturing, Made in Germany

We developed the revolutionary Easy-Mount –System to simplify the installation process. After the first installation, the block can be installed and uninstalled completely tool-less. The system also provides a fixed stop of the installation bolts. A faulty installation is almost impossible with this system.

But the design should also be worthy of a WATERCOOL product. Only the highest quality raw materials combined with the most cutting edge manufacturing technologies make a true HEATKILLER IV. As a final touch on the design, why took care of our customers’ requests and made the block compatible with fittings of up to 19mm width.

All HEATKILLER components are manufactured on our own CNC machines at the WATERCOOL headquarters in Waren, Germany. Many steps of the process are manual labor and each product is finished under dual control principle. This is truly “Made in Germany”.

Specifications:
Material: PLEXIGLAS® GS / PMMA (top), nickel-plated copper (bottom plate), polished stainless steel (brackets), nickel-plated brass ( Easy-Mount-System)
Dimensions (L x W x H): 66 x 59 x 17 mm
Weight: ca. 450 g
Sealing: NBR 70
Threads: 2x G ¼ inch (DIN ISO 228-1)
Thread distance:  25 mm
Socket compatibility AMD 939, 940, AM2, AM2+, AM3, AM3+, FM2, FM2+, AM4

Included:
HEATKILLER® IV PRO (AMD, AM4 ready) ACRYL HWLuxx Edition
Mounting material / Manual
