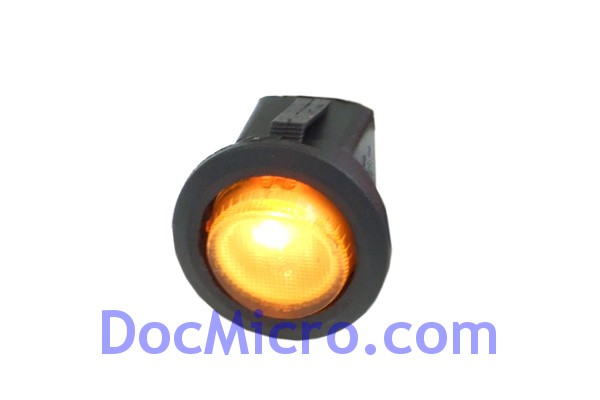

DocMicro Interruptor / Switch - Round YELLOW

DocMicro
Aucune
This product is no longer available for sale
Item code : 8053
Non-contractual photos
Technical details
This switch is based on an extremely robust and reliable mechanism.
The round button lights up when the switch is in the ON position.
It is easy to fix thanks to its notch system (the wall thickness must be between 0.75 and 3 mm).
It is necessary to insulate the connectors in order to avoid any risk of short circuit.
Ideal for turning off and on neon lights, fans etc ...

Technical characteristics :
Unipolar 16A / 250V ~
2 positions: ON & OFF
Size: 17 x 12.9 mm
Hole diameter: 19mm
External diameter: 20.9mm
LED: 12V DC
BiStable switch

Wiring: (see photo n ° 3)
Golden pin: To be connected to the mass (GND)
Middle pin: Connect to the accessory of your choice (neon lights, fan, etc.)
Opposite pin: To be connected to 12V
