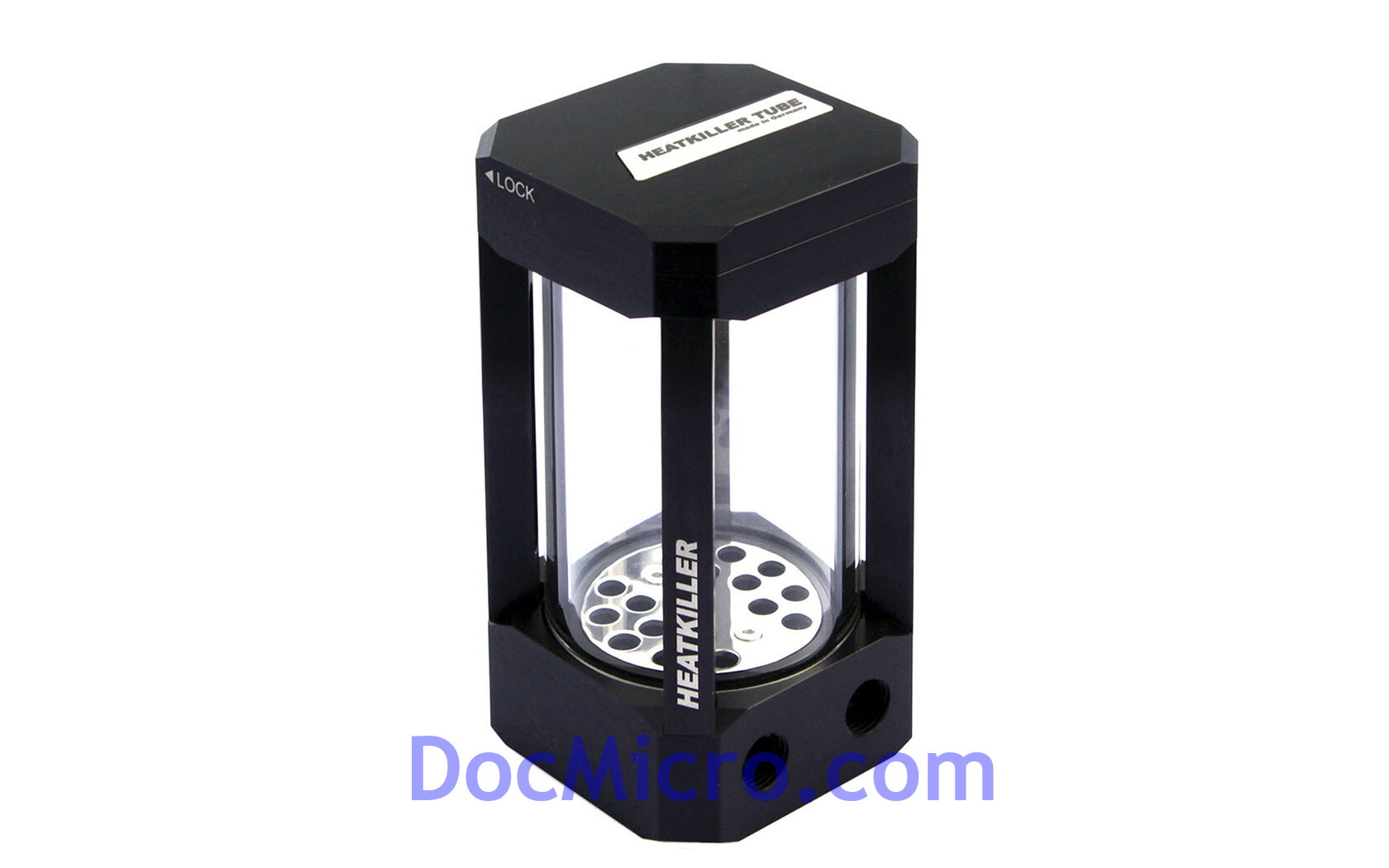

The Heatkiller® Tube series is a modular system of reservoirs with a borosilicate glass tube. It comes with a lot of premium features.
Borosilicate is the most premium material that is currently available for reservoirs. It is highly resistive against thermal or chemical stress, has almost no thermal expansion and is highly durable against scratches. So it offers the perfect characteristics for a premium reservoir.
Our Heatkiller ® Tube is available in several sizes. It can be integrated in a wide variety of systems perfectly. With the sizes 100, 150 and 200mm, there is a matching tube for every system, from mini-ITX to big tower!
With the flow optimized versions for Xylem (formally Laing) D5 or DDC pumps, you can integrate the pump directly into your reservoir. They come with a perfectly fitted acetal (POM) part that replaces the original Tube bottom piece. The pump is fed directly from the reservoir without any additional parts. The flow optimized channels provide less flow restriction and noise level.
The popular high-power pumps D5 and DDC often form a vortex in the suction area of the fluid and suck in air. This reduces the cooling performance and introduces air bubbles into the loop. Our Anti cyclone inlay completely prevents this from happening.
Thanks to a large filling mouth and a bayonet catch lid the HEATKILLER® Tube Series reservoirs can be opened without any tools and is easy to fill. It has never been easier to re-fill a cooling medium.
We offer a wide array of accessories for the perfect integration of the HEATKILLER® Tube reservoir into a system. This includes several different mounting options. Flexible mounting system offer horizontal or vertical installation on the case floor or wall or even on fans.
We also offer alternative struts that are anodized blue or red. Natural aluminum struts are also available that can be anodized by third parties in any given color. With our RGB or aRGB strips, the HEATKILLER® Tube reservoir can be perfectly illuminated.
All HEATKILLER® components are manufactured on our own CNC machines at the WATERCOOL headquarters in Waren, Germany. Many steps of the process are manual labor and each product is finished under dual control principle. This is truly “Made in Germany”.
Technical data
Material cover: POM
Material struts: black anodized aluminium
Tube: borosilicate glass
Material bottom: POM
Material Inlay: stainless steel
Measurements (L x W x H): 70 x 70 x 146 mm
Tube length: 100mm
Tube diameter: 65mm
Capacity: aprox. 250ml
Weight: aprox. 640g
Seal: NBR, VMQ
Connection thread: 2x G Ľ inch (DIN ISO 228-1)
Scope of delivery:
1x HEATKILLER® Tube 100
1x manual
Alphacool's new Low Noise Edition of the Laing DDC for absolute silence!
The Laing DDC pump is one of the best known pumps in the watercooling industry. Recently we have been working with Laing to take the DDC to the next level. The new Laing DDC310 was designed with a perfect balance of power and silence in mind. Unlike other versions with the plastic base we have revised the design with new superbly tuned brass housing which aids the pumps cooling and guarantees longer life especially when placed in areas with limited airflow.
This new housing promises a longer life of the pump. Through the cooling fins and air flow as well as an internal thermal pad attached directly to the pump board maximum cooling is achieved.
Another feature is the included decoupling option. If a pump top with a M4 threaded mounting hole, such as the Alphacool Laing DDC Acetal top is present. The special M4 screws can be screwed directly into the decoupling set and then into the case.
The pump also comes as standard with an anti-vibration mounting system . Available in black nickel and silver nickel.
This pump should be the first choice for your watercooling system.
Technical Details
Scope of delivery
Note
Not suitable for continuous operation with liquids containing titanium dioxide or glycerine. Typically, many pastel colors use these additives.
