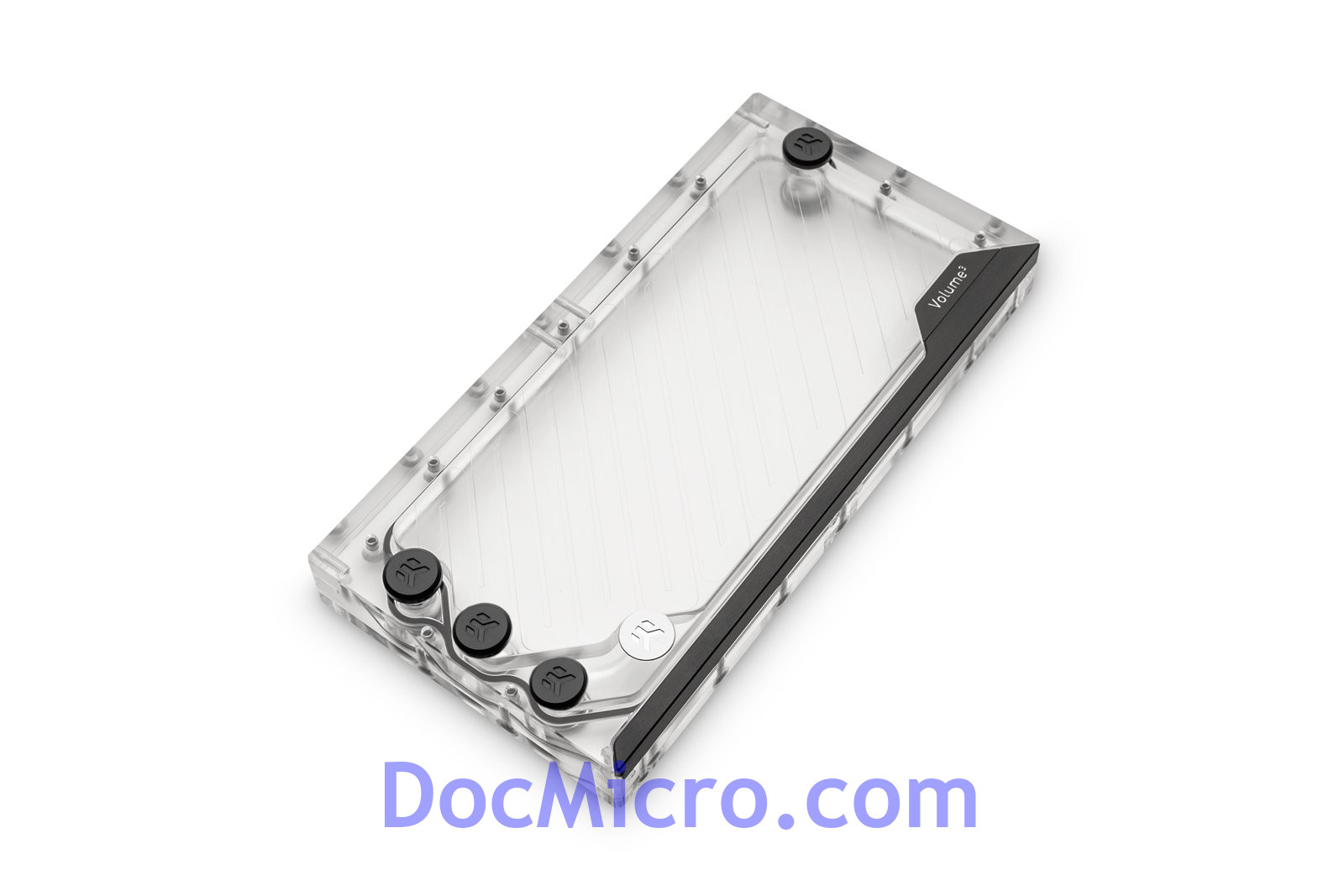

This next-generation EK-Quantum Volume³ FLT reservoirs build on the success of the existing FLT, flat-style reservoirs further improves compatibility, and simplifies the installation process by implementing additional G1/4“ connection ports.
The reservoir features standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4“ ports so that users can choose the most optimal setup for their liquid cooling loops.
These new FLT reservoirs are available in five different sizes 120mm, 240mm, 140mm, 280, and 360mm.
The new Volume³ flat-shaped reservoirs are to revolutionize the way you were thinking about loop building. Since 120mm fan mounting patterns (105mm apart) are the most dominant mounting options inside PC cases these days, these new Volume FLT reservoirs will allow greater flexibility for installation since they don't require drilling of mounting holes on your case. The reservoir is also equipped with additional mounting points on both sides (105mm apart) which can be used with the included steel L-shaped mounting plates. All mounting holes utilize M4 threads with the included screws.
The reservoir is manufactured of premium quality acrylic material, and machined to perfection, while the sealing is performed by a custom-formed high-quality EPDM o-ring. Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible. The cover is now a standalone piece, easily removable at any time if the LED strip requires any service or replacement.
Technical specifications:
- Size (HxWxT): 138.5 x 128 x 40mm
- Capacity: ~250ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
- LED Count: 27
Enclosed:
- EK-Quantum Volume³ FLT 240
- Mounting mechanism with all necessary screws
- L-shaped steel holders with mounting screws
The Alphacool Apex Distro Plate is the visual upgrade for the Y60. It was specially designed for this case and replaces the front glass panel. A must-have for every custom water cooling system.
Apex Design
The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique premium product. A core element is the chrome-plated brass G1/4" connections. In this way, Alphacool avoids the problem of possible leaks due to cracking caused by screwing the connections directly into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when installed in the acrylic.
High-quality choice of materials & brilliant lighting
Alphacool's Apex Distro Plate is made from high-quality acrylic glass. This allows a clear view of the coolant and enables brilliant illumination thanks to the built-in digitally addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the mainboard or optionally via Alphacool's Aurora Eiscontrol aRGB controller (article no.: 15360).
Easy installation
The Alphacool Apex Distro Plate Y60 replaces the front glass panel of the Y60 housing and is easy to install. It is mounted in place of the glass panel and securely fastened using the original screws. After installation, the distro plate is connected to the water cooling loop.
Note: The Apex Distro Plate Y60 is only compatible with the Y60 housing.
Attention: It is not possible to mount the Distro Plate if a 140 mm or 280 mm radiator is attached to the side.
Compatibility:
- Y60 Case
Technical data
Dimensions (L x W x H)
344,50 x 213,50 x 87,30 mm
Material
acrylic
Volume
approx. 300ml
Pump compatibility
VPP/D5
Threads
6x G1/4" + 1x fill port and 1x drain port
Maximum working temperature
60 °C
Pressure tested
0,8 Bar
Quantity digital aRGB LEDs
11
Power digital aRGB LEDs
5V
Power connection digital aRGB LEDs
3-Pin JST + 3-Pin 5V
Weight
3000g
Color
transparent
Technical data pump
Material pump
synthetic material
Material pump cover
aluminium
Material axle
ceramics
Connections
4-Pin PWM | SATA
Rotational speed
2500 - 4500 RPM
Cable lengths
4-Pin PWM - 48cm | SATA - 48cm
Operating voltage
8-13V DC / 14W IP32
Starting voltage
12V DC
Maximum pumping head
4,25m
Maximum flow rate
340L/h
Maximum working temperature
60°C
Color
black
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
