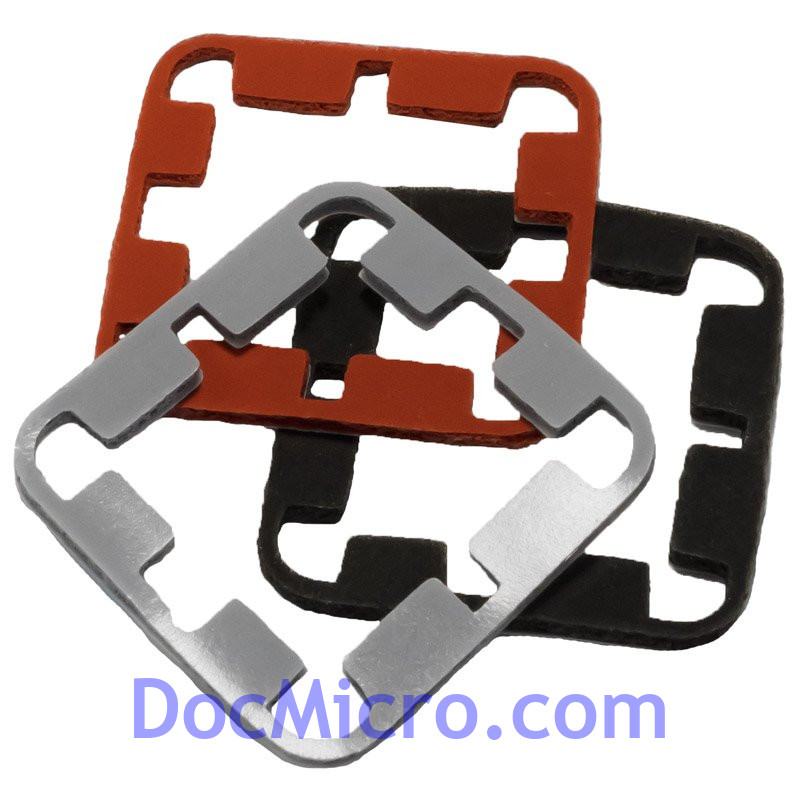

The AMD Ryzen 7000 CPU Guard from Thermal Grizzly is a foam gasket that fills the cutouts on the IHS during assembly of the CPU cooler to protect the electronic components on the CPU package from thermal conduction agents.
The heat spreaders of the Ryzen 7000 processors have cutouts on the edges. Electronic components on the CPU package are located in these recesses. In addition, the IHS does not close with the PCB of the package in these areas. This can lead to contamination and damage to the CPU.
This is where the AMD Ryzen 7000 CPU Guard comes into play. The foam gasket fills the recesses of the heatspreader to cover the exposed areas. This protects the electronic components, for example from thermal paste and liquid metal.
The Black Ice® SR2™ MP delivers the next level in ultra-stealth PC radiator performance.
Bringing to bear the new Black Ice® SR2™ compact Xtreme+ quad 140mm fan platform, the SR2™ 560 MP gives hard core PC modders 3-rows of air pressure optimized copper fins, complemented with high internal flow tubing to bring class-leading ultra-stealth cooling performance.
Technical details:
Built-in 8-PORT Inlet/Outlet manifold system
140 mm x 4 fan Xtreme+ form factor 3-row radiator
592mm x 153mm x 60mm (L x W x H)
9 FPI 45 Micron Copper Fins
Optimized for sub-800 rpm ultra-stealth fans
Supercruise™ optimizations for scalable performance with higher speed fans
50% more tubing area than the Black Ice® SR1-560
Increased internal coolant flow rates optimized for multi-stage cooling configurations
Standard G 1/4" inlet/outlet fittings
Standard M4 mounting threads
Compatible with Black Ice® GTX® 560 and Black Ice® SR1® 560 radiators
Custom Black Carbon™ high quality finish
Fully ROHS Compliant
100% Made from conflict-free materials
Industry standard Black Ice® quality
Lifetime warranty against manufacturing defects*
* Limited warranty information: www.hardwarelabs.com/nemesis/warranty
| Recommended | Capacity | Stealth | Supercruise | 8-Core CPU | GPU SLI/Crossfire | Fans |
| SR2-120 MP | 420W | ™œ | ™œ | ™œ | 1 | 1 X 120mm |
| SR2-240 MP | 950W | ™œ | ™œ | ™œ | TRIPLE | 2 X 120mm |
| SR2-360 MP | 1500W | ™œ | ™œ | ™œ | QUAD | 3 X 120mm |
| SR2-480 MP | 2000W | ™œ | ™œ | ™œ | QUAD | 4 X 120mm |
| SR2-140 MP | 500W | ™œ | ™œ | ™œ | 1 | 1 X 140mm |
| SR2-280 MP | 1100W | ™œ | ™œ | ™œ | TRIPLE | 2 X 140mm |
| SR2-420 MP | 1800W | ™œ | ™œ | ™œ | QUAD | 3 X 140mm |
| SR2-560 MP | 2350W | ™œ | ™œ | ™œ | QUAD | 4 X 140mm |
Product Reviews:
- Xtremerigs - ER GOLD Award
- ProClockers - Highly Recommended Award
Black Ice SR2 MP Mounting Diagram [ 40 kb ]
This version includes English only
